KUBOTA ZE-421 FULLY ELECTRIC RIDE-ON MOWER

TAKE IT EASY, TAKE IT GREEN

Smart, Simple, Silent: innovation in 3 words.

The Ze Series is Kubota’s first fully electric ride-on mower. The simple fact that these machines will spend the majority of their working lives in an urban environment means zero emissions and low noise levels are paramount.

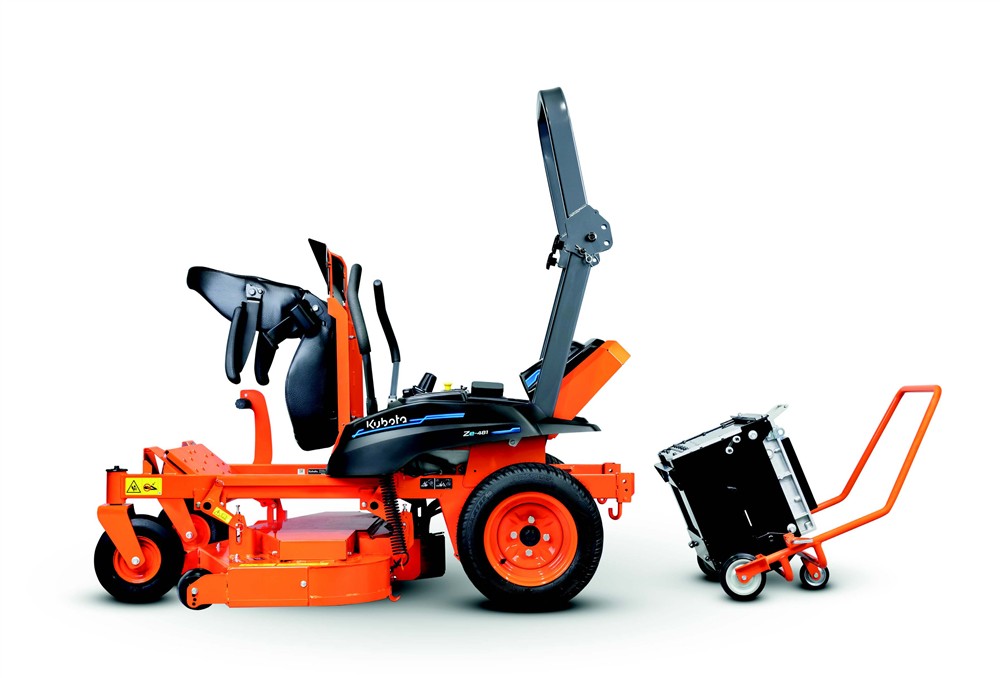

Remove, replace. How easy is that

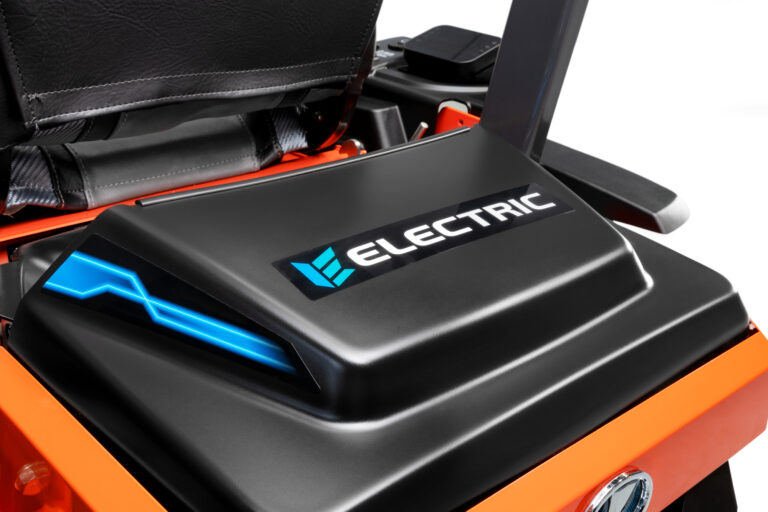

The “heart” of the machine is a 48V / 10kW.h battery located to the rear of the machine, pretty much where an engine would sit. Typical continuous cutting time is up to 4 hours (depending on cutting conditions), however the Ze has a unique feature in that the battery pack can be quickly and easily removed and another fully charged battery fitted.

Great cutting performance, whatever the conditions!

Landscape contractors: high output at low costs. And if the contractor has the optional battery pack, the days can be even longer with greater financial rewards. Public sector areas like recreation and parks are extremely sensitive to environmental issues: the zero emissions and low noise of the Ze Series are the ideal solutions. Residential - Large private garden owners: re-charging is quick and effective. No servicing costs to the “engine”.

Clean energy, all day long

“An electric professional mower that can be used all day long” is the concept of the Ze. Do not compromise between work and environmental footprint, this gap has been connected with this zero turn mower.!

Relax, enjoy the ride

A big benefit for the operator during work is the large reduction of noise and vibration compared to petrol engine machines. With the deluxe seat and all controls positioned to either side the comfort is clear to see.!

Three working modes

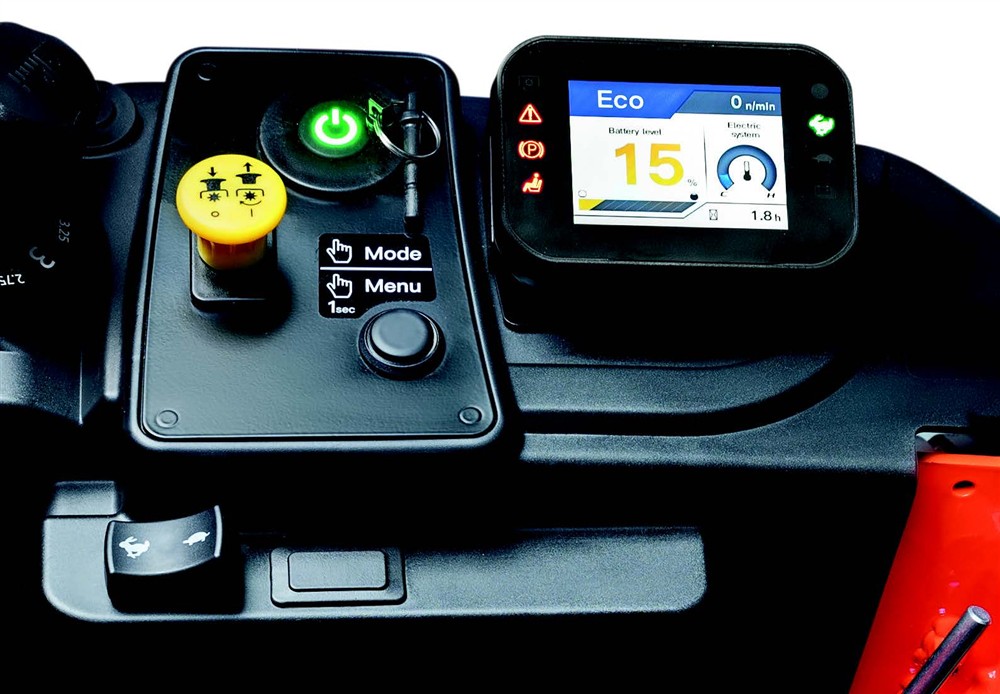

Three different working modes can be selected to suit the conditions the mower is working in. Optimizing these modes will ensure the operating hours of the battery is maximized. The required mode is selected through the LCD monitor.

Kubota Ze K-sense

In all operating modes there is a control function that automatically optimizes vehicle speed according to deck motor load. If a large load is applied to the deck motor and causes poor cutting, the vehicle automatically decelerates, and when the load is removed, it automatically accelerates.

Model	Power Pack	Battery Type	Transmission
Ze-421 / Ze-481	48V / 10kW single battery.	Lithium-ion	Electric drive transaxle

ELECTRICAL FEATURES

• 48V Lithium-ion battery
• 10 kWh battery capacity
• Extra battery pack (optional)
• Up to 4 hours working time (up to 1.5 ha)
• Domestic plug battery (AC 100-230V) charging system
• Portable charger included
• Charging time: approx 5h (AC230V)/approx 10h (AC100V)

MOTOR

• 2-Electric motor with Gear Reduction (Transmission)
• Max power 4.9 kW (6.6 Hp)
• Max torque 486 Nm
• Push-button engine start with magnetic key

DRIVELINE

• Max. speed 9.8 kph
• Control system developed by Kubota
• K-Sense system
• Electromagnetic parking brakes

MOWER DECK

• Newly design electric mower-deck
• Electric drive mower deck (Patented technology)
• 3 mowing modes (Eco, Standard, Boost)

OPERATORS ENVIRONMENT

• Large comfortable seat
• 3.5 inch LCD colour display
• USB charger
• Foldable ROPS
