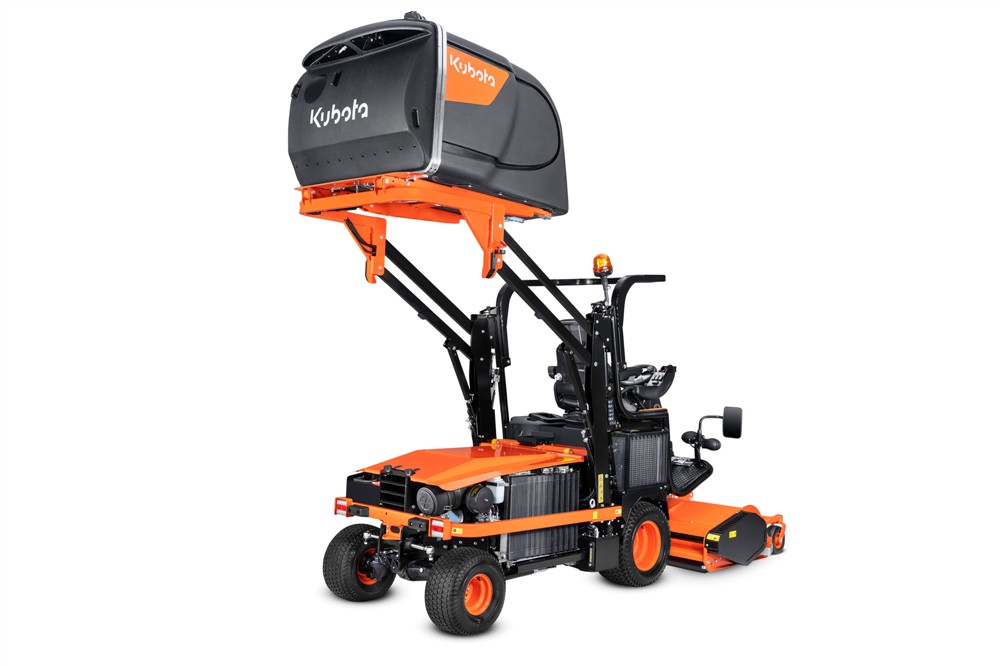

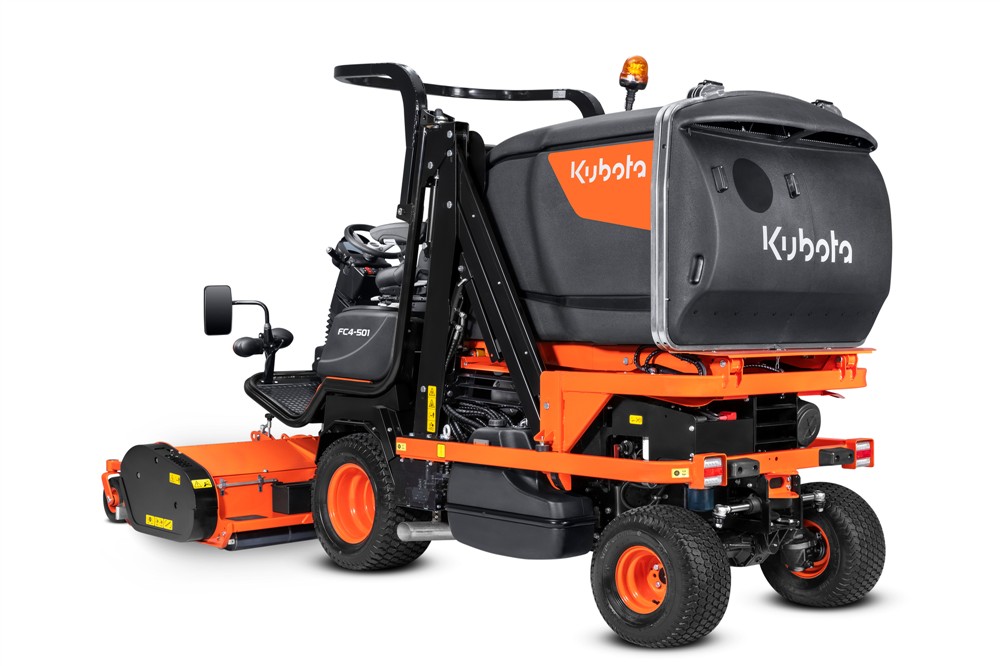

KUBOTA FC4-501 UP-FRONT ROTARY RIDE-ON MOWER

THE SUPERIOR FLAGSHIP


The FC4-501 is in its element covering very large areas ensuring high productivity and fine cutting with the 50hp engine.

Exceptional workplace

The large operator platform of the FC4-501 offers the highest level of comfort, ergonomics and safety

Efficient engine

The 4-cylinder Kubota diesel engine is very powerful and low in emissions thanks to the diesel particulate filter.

Great driveline

The HST transmission contributes decisively to the mower's impressive performance with convincing features.

Precise mower decks

The mower decks of the FC4-501 impress with excellent cutting quality and productivity.

Voluminous grass collector

The high-discharge grass collector has a capacity of a whopping 1,300 liters.

Model	Engine	Max. Power	Transmission	Mower deck	Collecting System	Collector capacity
FC4-501	Kubota, 4-cylinder, 2434cc, Stage V	50 hp	4WD HST	59” rotary; 61” flail	Center collect with suction turbine	1300 litres

Working comfort

• A high level of driving and operating comfort is the basis for long working days and concentrated work.
• The platform is suspended on silent block rubber mounts that dramatically reduce any vibrations.
• The comfortable air-suspension Deluxe seat guarantees ultimate driving comfort.
• The compact armrest console with controls sets standards in terms of operation.
• Tilting large work lights provide a great view of the work area even in the dark.

Engine

• The V 4-cylinder liquid-cooled diesel engine V2403CR offers state-of-the-art engine technology for high performance, fuel efficiency and reduced emissions.
• E-TVCS (Three Vortex Combustion System) ensures improved performance, lower fuel consumption and emissions, and smooth engine start-up.
• The DOC (Diesel Oxidation Catalyst) reduces nitrogen oxide emissions and ensures continuous minimum regeneration in the DPF (Diesel Particulate Filter).
• Two electric reversing cooling fans for the engine cooling radiator and the oil cooler react immediately to temperature differences and prevent overheating.
• Regular inspection and maintenance tasks are quick and easy with the FC4-501.

Driveline

• Forward and reverse speed on the FC4-501 is controlled by two pedals.
• Two speed ranges are available for different applications – for mowing and for road travel.
• The permanent 4-wheel drive and differential lock provide the best traction in all conditions while protecting the turf.
• The parking brake is easily locked and unlocked with a switch and ensures safe parking even on steep terrain.
• The hydraulic system components are easily accessible for inspection and maintenance.

Mower decks

• Kubota's front mower deck and flail mower deck offer precise, highly productive mowing with the FC4-501.
• The front mower deck with a width of 1.50 m (59") offers high productivity with high cutting quality even in wet conditions.
• The "swing back" system with "swing back" twin blades absorbs shocks and protects the mower driveline from being hit by foreign objects in the grass.
• The mower deck can be hinged and fixed in a vertical position for sharpening or replacing the blades.
• A rocker switch on the armrest console raises and lowers the mower deck.
• There are several blade options for the 61" (1.55 m) wide flail mower.

Grass collector

• The unique suction turbine ensures a smooth filling of the large grass collector.
• Lift, lower, tilt, retract – the grass collection is conveniently operated from the operator's seat using the single-lever joystick.
• The maximum unloading height of the grass collector with a whopping 1,300-litre capacity is 2.30 metres.
• Various functions of the grass collector ensure that the hopper volume can be fully utilized.
• A hydraulically controlled parallelogram system and a large tipping clearance allow effective and safe unloading.
