FC3 Series - THE COMFORTABLE WORKHORSE

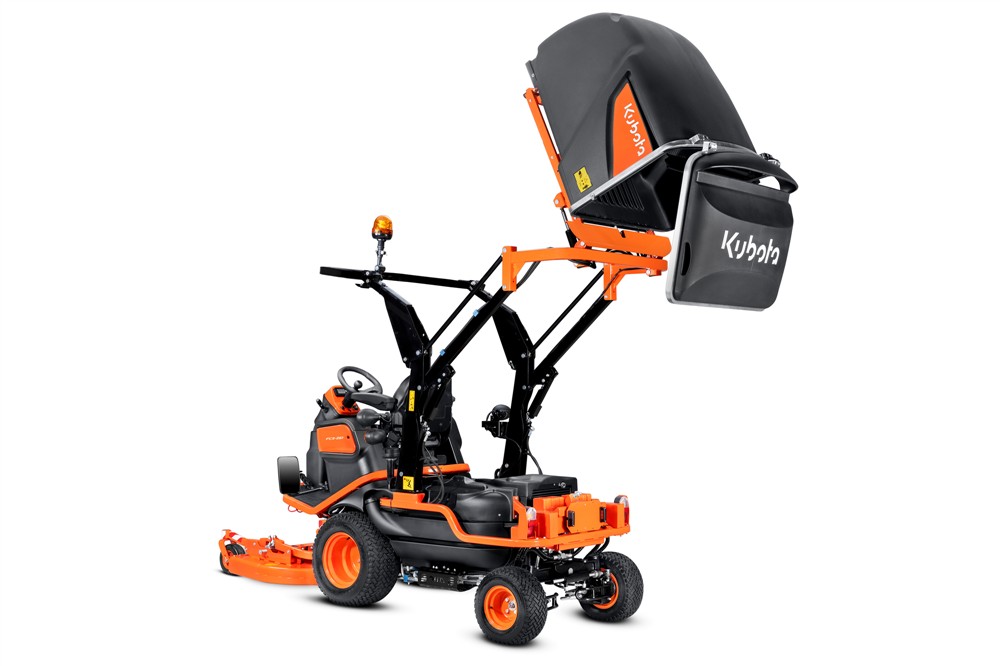

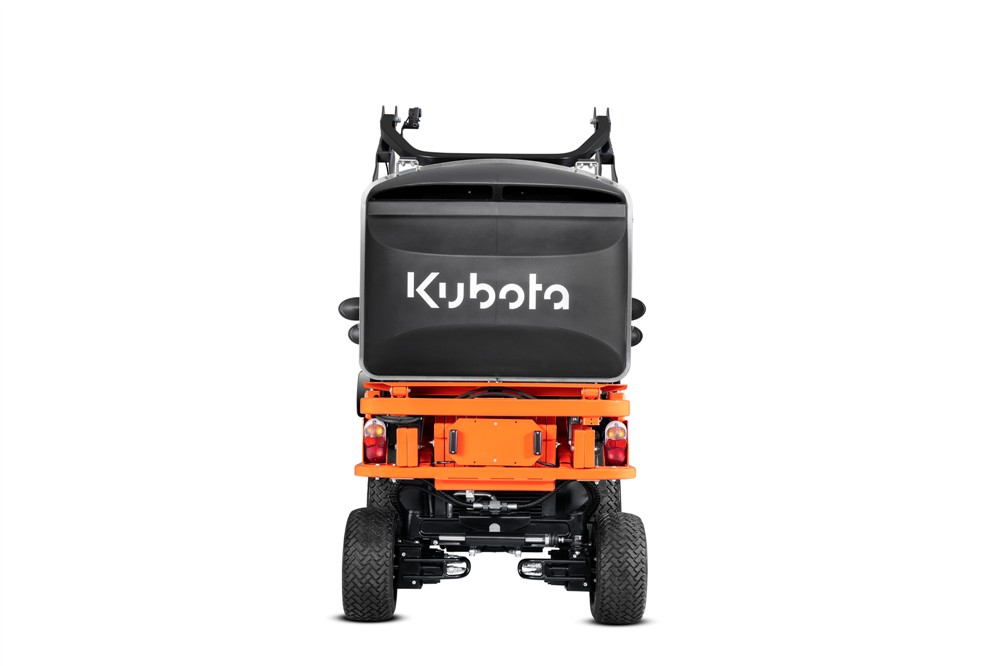

The robust large area mower Kubota FC3-261 offers high working comfort and cutting performance for mowing large lawns.

Model	Engine	Max. Power	Transmission	Mower deck	Collecting System	Collector capacity
FC3-261	Kubota, 3-cylinder, 1123cc, Stage V	26 Hp	4WD HST with HTC	50" or 51" rotary, 53" flail	Center collect with suction turbine	800 litres

WORKING COMFORT

• The monocoque platform is mounted on silent blocks that ensure less vibrations are transmitted to the operator.
• The Deluxe driving seat has a reclining backrest and adjustable armrests.
• The driver can adjust the steering wheel individually to a comfortable driving position.
• The mower's rollover protection system (ROPS) ensures a safe working environment.
• LED lights on the front and side provide excellent visibility even at night.

ENGINE

• Kubota's liquid-cooled Kubota D1105 three-cylinder diesel engine with emission level V produces a whopping 26 hp (19.2 kW) from a displacement of 1.123 liters.
• The engine is also fuel-efficient thanks to the Kubota E-TVCS inline fuel injection system.
• The E-TVCS combustion system ensures an efficient combustion process in the engine and reduces noise and emissions.
• The high ease of maintenance of the engine keeps daily checks pleasantly short.
• The 30-liter fuel tank guarantees a large workload without having to refuel.

DRIVELINE

• The two rotary mower decks and the flail mower deck guarantee a clean, precise cut on lawns as well as in dense, tall grass.
• An optional 50'' (1.26 m) wide rotary mower deck and a 51'' (1.30 m) wide rotary mower deck with reverse rotation are available for the FC3-261.
• "Swing-back" twin blades absorb shocks and protect the driveline from being hit by foreign objects in the grass.
• For the optional flail mower deck with a width of 1.35 m (53'') there are different blades for a convincing result.
• The mower deck height is simply adjusted with a lever.

GRASS COLLECTOR

• Perfect combination of a powerful suction turbine and a large-volume grass collector for high-level discharge.
• Fast and smooth collection and discharge of different cut materials.
• The patented suction turbine offers decisive advantages such as a more effective collection process and greater stability of the machine.
• The 800-liter capacity grass collector is conveniently operated from the operator's seat using the single-lever joystick.
• The collection system of the grass collector is fully utilized.

MOWER DECKS

• The two rotary mower decks and the flail mower deck guarantee a clean, precise cut on lawns as well as in dense, tall grass.
• An optional 50'' (1.26 m) wide rotary mower deck and a 51'' (1.30 m) wide rotary mower deck with reverse rotation are available for the FC3-261.
• "Swing-back" twin blades absorb shocks and protect the driveline from being hit by foreign objects in the grass.
• For the optional flail mower deck with a width of 1.35 m (53'') there are different blades for a convincing result.
• The mower deck height is simply adjusted with a lever.

PDF Brochure

Click to view or download a product PDF brochure.
