KUBOTA Z2-481 ZERO TURN MOWER

Z2-481 - THE RESIDENTIAL MOWER THAT PERFORMS LIKE A PROFESSIONAL


For customers considering a zero-turn mower probably the key criteria would be manoeuvrability and performance. Add to that wish list comfort, safety and reliability and you have the Z2-481 mower from KUBOTA.

Safety First

ROPS protection and seat belt ensures operator safety when working on inclines. The ROPS is foldable allowing the machine to be stored in a low entrance building or when cutting under low branches.

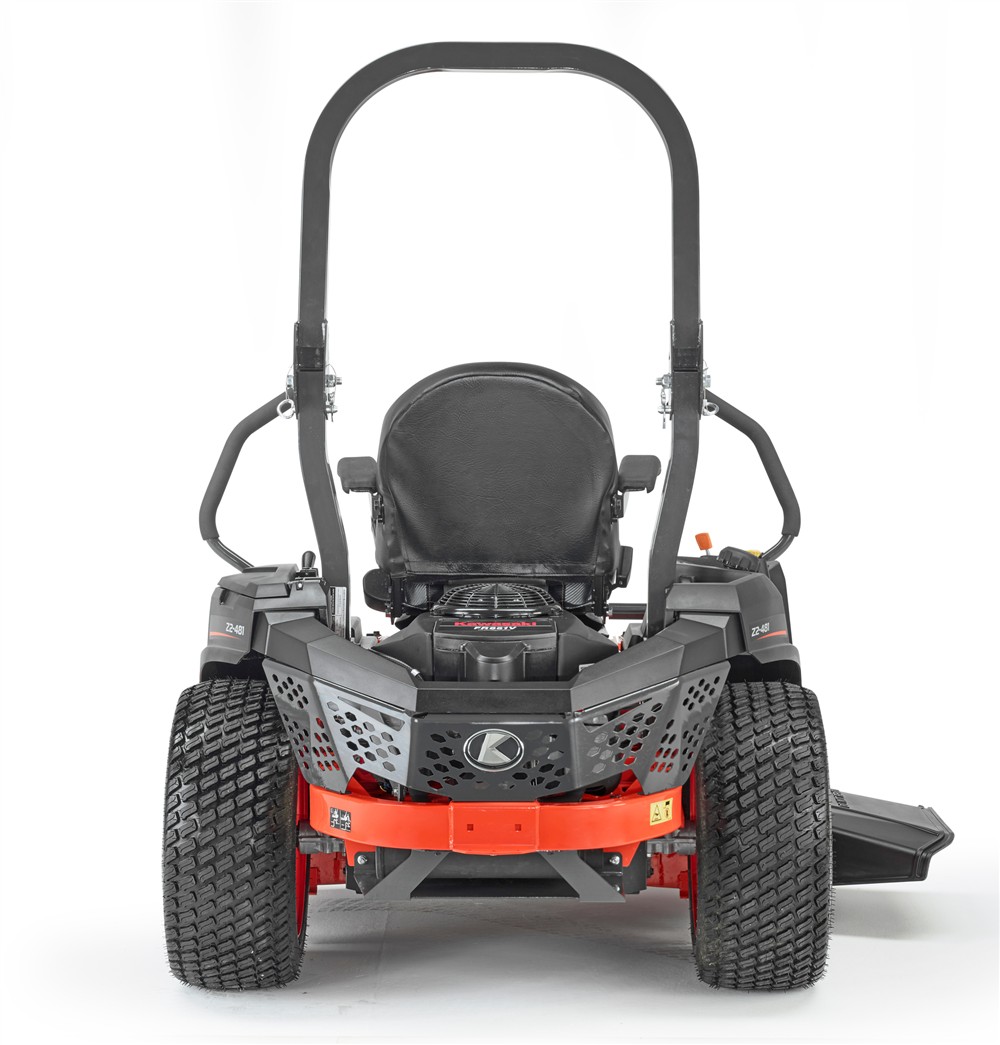

Rear end protection

A rear bumper bar protects the area from accidental damage. A rear trailer towing pin expands the machine’s versatility.

Parking brake

A parking brake locking lever can be used to stop the machine in an emergency. Normal braking is done using the motion drive levers.

Operator Presence Control and PTO drive engage switch

If the operator leaves the seat whilst the PTO mower deck drive is running, the engine will stop. PTO drive switch must be in the dis-engaged position before the machine will start.

K-Ride comfort system

The ride suspension system can be set to suit the individual operator.

Outstanding Comfort

A fully adjustable deluxe seat. Deep padded seat and backrest, armrests, padded grip drive levers and a spacious platform floor area makes the Z2-481 a truly pleasurable experience.

Anti-vibration dampers

The floor plate is not only removeable allowing access to the deck drive belts but is also mounted on rubber dampers which removes any vibration that might be felt through the floor. The drive levers are also anti-vibration to remove any discomfort felt through your hands.

Controls grouped together and covered storage box

The console is contoured to allow the controls to be at the correct angle for ease of use. Covered storage keeps out dust and prevents items from falling out. A secure drinks holder is conveniently located. Fluorinated greenhouse gases

Model	Engine	Max. Power	Fuel Tank	Transmission	Max. Speed	Mower Deck
Z2-481	Kawasaki 726cc air cooled petrol engine	21.8 hp	16 litres	HST transmission	13 km/h	48" Side discharge deck (optional mulching kit)

WORKING COMFORT

• Push start button
• K-Ride HST Levers
• Isolated wide and removable Floor Pan
• Foldable ROPS
• 21” High Back Seat
• 1.5” Suspension Seat
• Improved K-Lift (50% Less effort)
• Larger Front Caster

ENGINE

• 4-cycle OHV petrol engine
• Cast aluminum crankcase and cylinder heads
• Air cooled
• 90° V-twin
• Electronic spark ignition with push start button and magnetic key
• Lightweight design
• Fuel tank capacity - 16 litres
• Easy access for checks and maintenance
• Combined filler and dipstick

DRIVELINE

• Motion lever drive control
• HST transmission with infinitely variable speed
• Max. speed 13 kph
• Zero turning radius
• Low profile drive wheels
• Parking brake
• 22 x 10 – 14 low profile tyres

MOWER DECK

• 48" Side discharge deck
• Optional mulching kit
• Improved blade design for reduced noise and top cutting performance.
• Electro-magnetic PTO clutch engagement of the drive belt.
• K-lift deck raise / lower control
• Quick-dial deck height adjustment
• Floor panel removal for quick belts maintenance
• Useful jack lift to allow access under the mowerdeck
