KUBOTA FC4-441 4WD UP-FRONT SELF-PROPELLED ROTARY MOWER

Contact us for a price

Enquire

Details
Related

The Professional Solution for large green areas

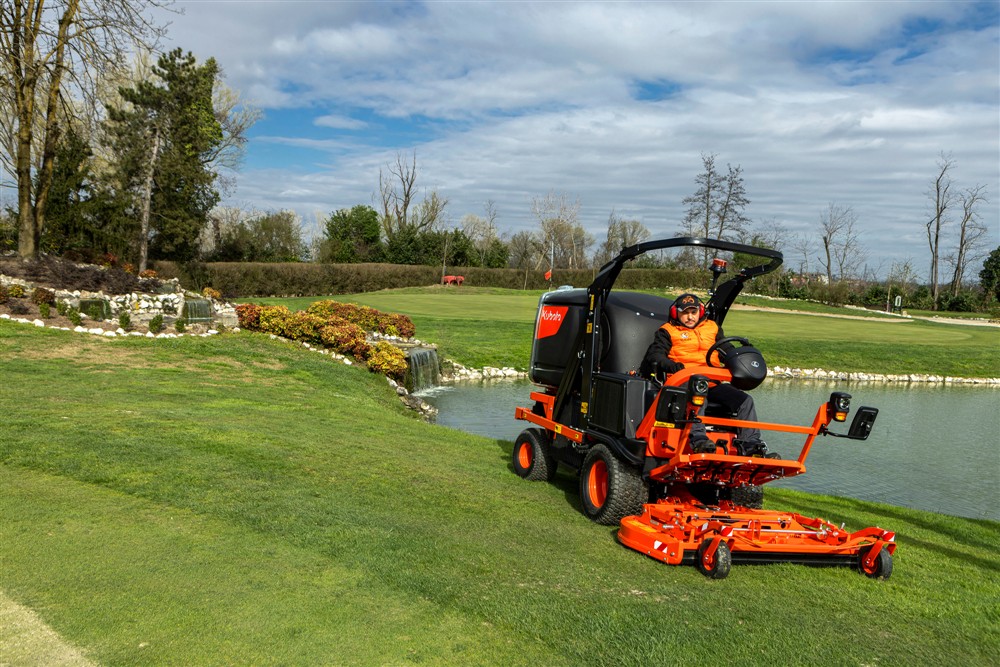

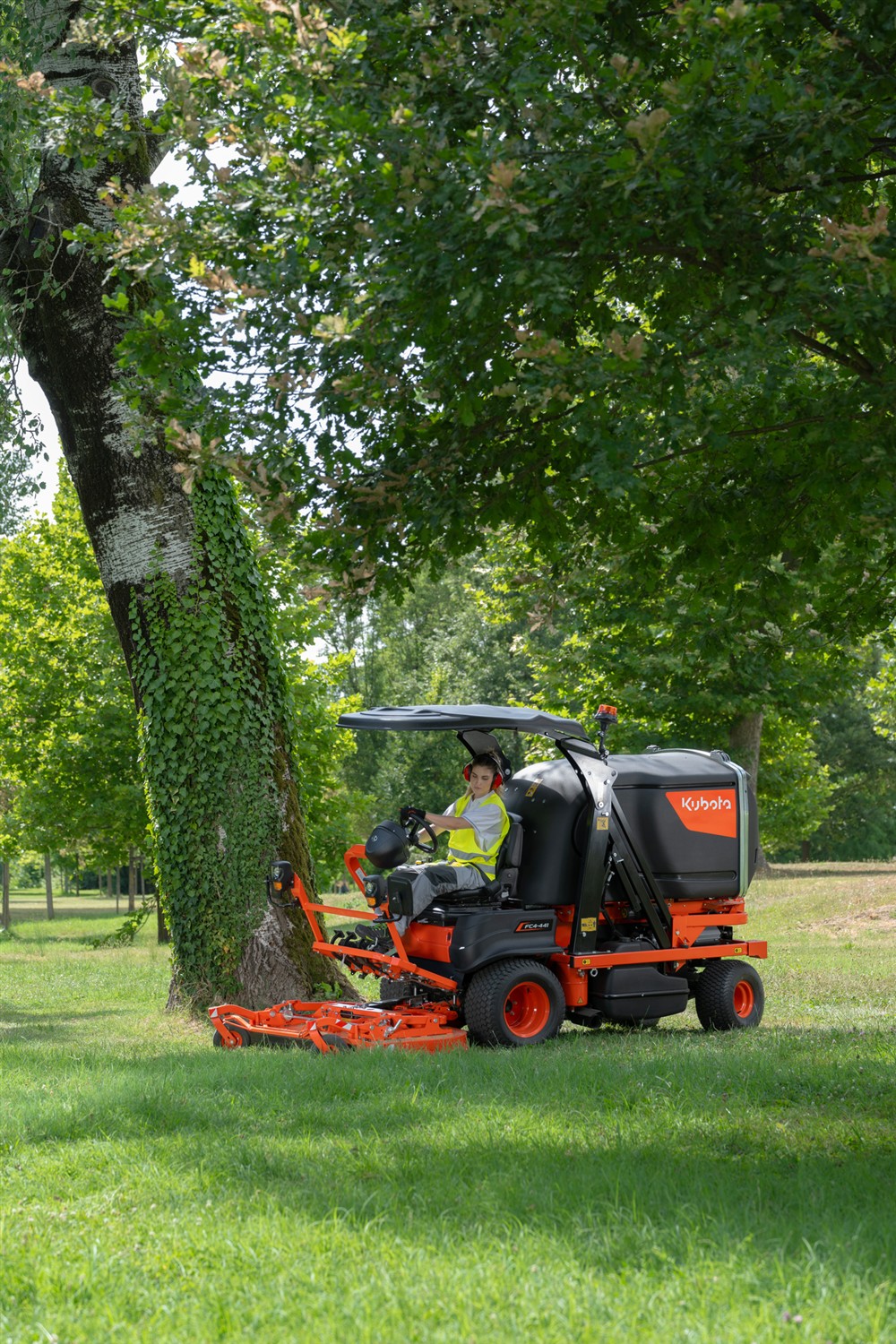

The Kubota FC4-441 is reliable, versatile machine built to handle large areas like parks, municipal spaces, golf courses and similar with efficient cutting and great performance.

Engineered for perfomance

The Kubota 4 cylinder turbocharged diesel engine with Stage V emission standards represent the perfect balance between power and efficiency, ensuring that all the tasks are carried out with ease and reliability.

Control at its best

Dual-speed ranges and full-time 4WD enable operators to maintain steady speed and optimal traction regardless of the terrain or workload., reducing fatigue and increading on-field productivity.

Mow smart

A twin blades technology with opposite rotation, swing back and magnetic pin system ensure fine cut across large areas and easy maintenance.

Efficiency first

A large 1300 liters capacity collector with a emptying height of 229cm, motor-driven deflector and load spreader, which distributes clippings throughout the tank, reduce downtime and increase productivity.

Comfort is not an option

A lower sit position with armrest and an expansive, tilting platform improves visibility and reduces fatigue over extended period. Led lights and ergonomic levers make your work easier even during low light operations.

Stick to your needs

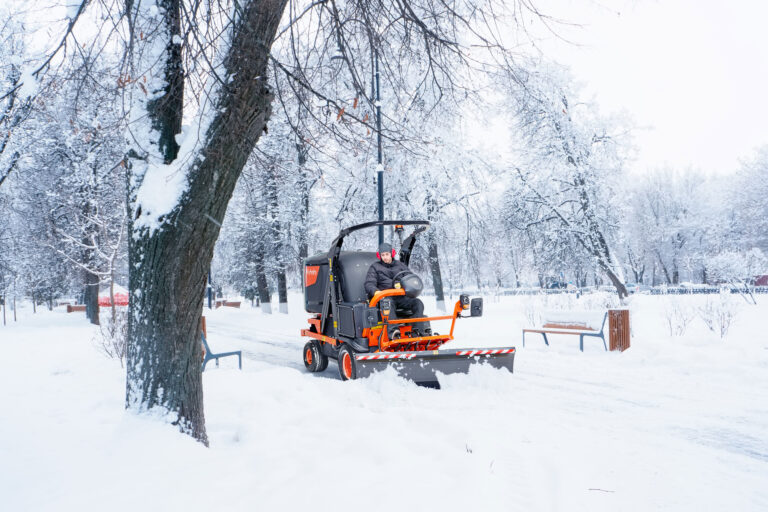

Different solutions like snow blade attachment make the FC4-441 fully customizable to adapt to every challenges.

Model	Engine	Max. Power	Transmission	Mowing unit	Collection system	Collector capacity
FC4-441	Kubota V2403-CR-E5	44 HP	4x4, hydrostatic (HST)	59’ (rotary blades) / 61’ (flail blades)	Central collection with suction turbine	1,300 litres

Working Comfort

The platform is suspended on silent block rubber mounts that dramatically reduce any vibrations.
The comfortable air-suspension Deluxe seat guarantees ultimate driving comfort.
Tilting large work lights provide a great view of the work area even in the dark.

Engine

4-cylinder water-cooled Kubota diesel engine
EU Stage V emission
The DOC (Diesel Oxidation Catalyst) reduces nitrogen oxide emissions and ensures continuous minimum regeneration in the DPF (Diesel Particulate Filter).
Two electric reversing cooling fans for the engine cooling radiator and the oil cooler react immediately to temperature differences and prevent overheating.

Transmission

The permanent 4-wheel drive and differential lock provide the best traction in all conditions while protecting the turf.
Forward and reverse speed on the FC4-441 is controlled by two pedals.
Two speed ranges are available for different applications – for mowing and for road travel.
The parking brake is easily locked and unlocked with a switch and ensures safe parking even on steep terrain.

Mower decks

An ergonomic lever raises and lowers the mower deck.
The front mower deck with a width of 1.50 m (59") offers high productivity with high cutting quality even in wet conditions.
The "swing back" system with "swing back" twin blades absorbs shocks and protects the mower driveline from being hit by foreign objects in the grass.
The mower deck can be hinged and fixed in a vertical position for sharpening or replacing the blades.

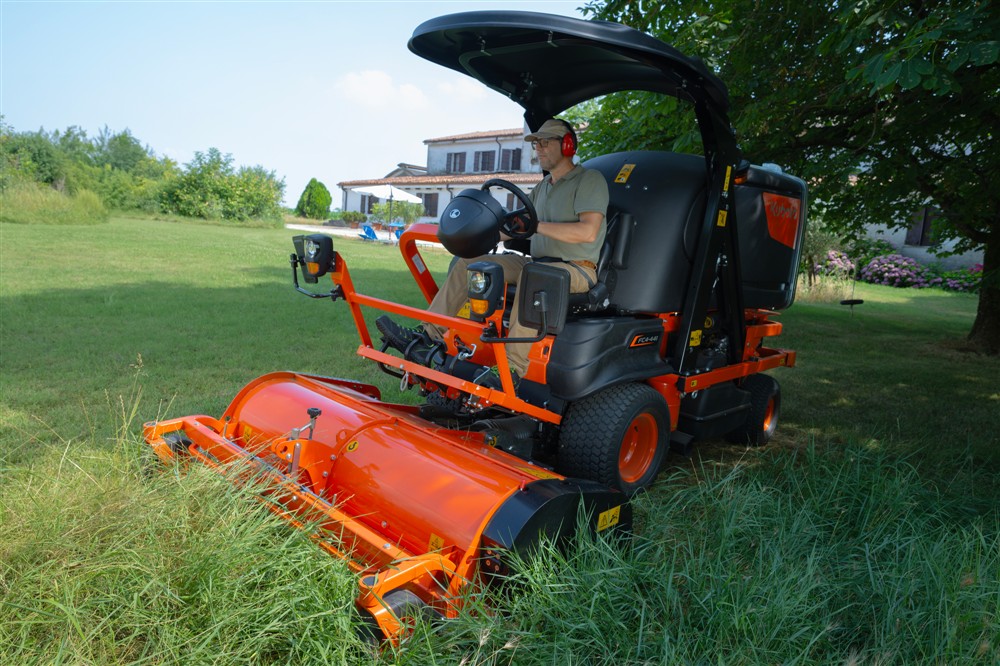

There are several blade options for the 61" (1.55 m) wide flail mower.

Grass collector

The unique suction turbine ensures a smooth filling of the large grass collector.

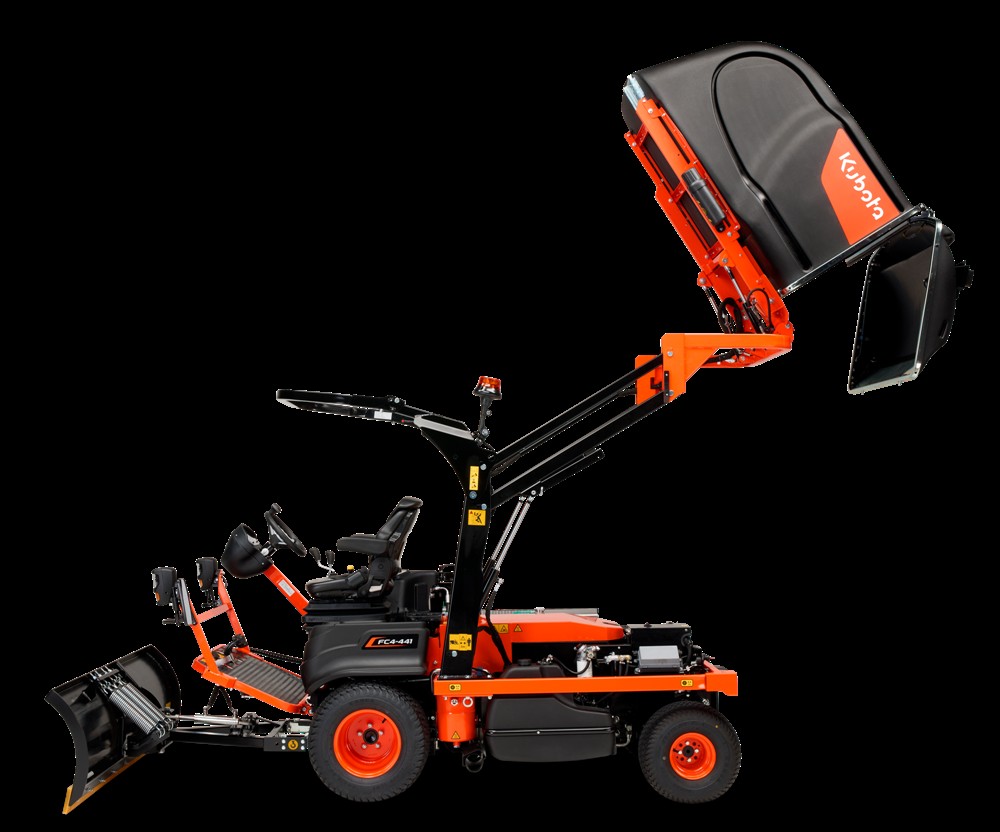

Lift, lower, tilt, retract – the grass collection is conveniently operated from the operator's seat using the single-lever joystick.
The maximum unloading height of the grass collector with a whopping 1,300-liter capacity is 2.30 meters.
Various functions of the grass collector ensure that the hopper volume can be fully utilized.
A hydraulically controlled parallelogram system and a large tipping clearance allow effective and safe unloading.

PDF Brochure

Click to view or download a product PDF brochure.

SKU:.NFC4-441
