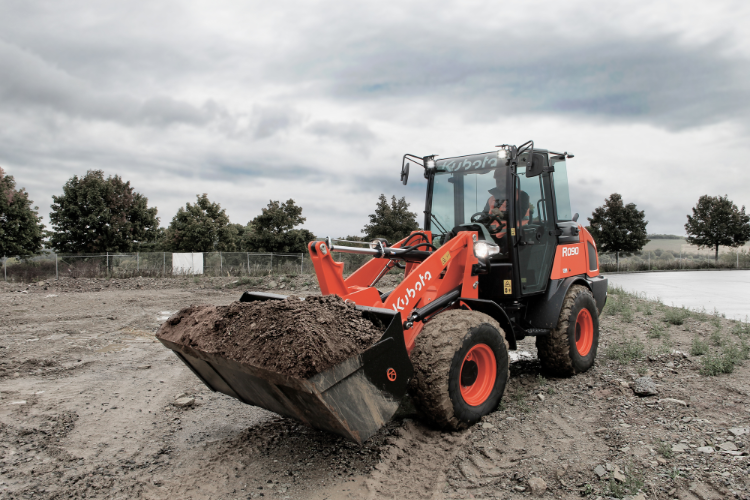

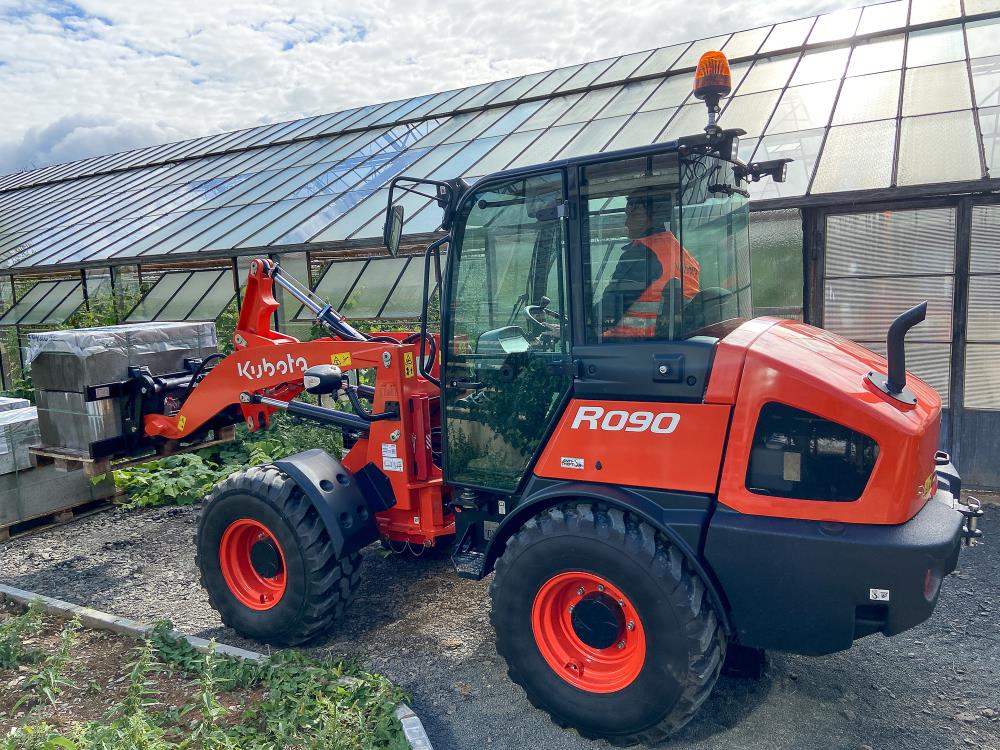

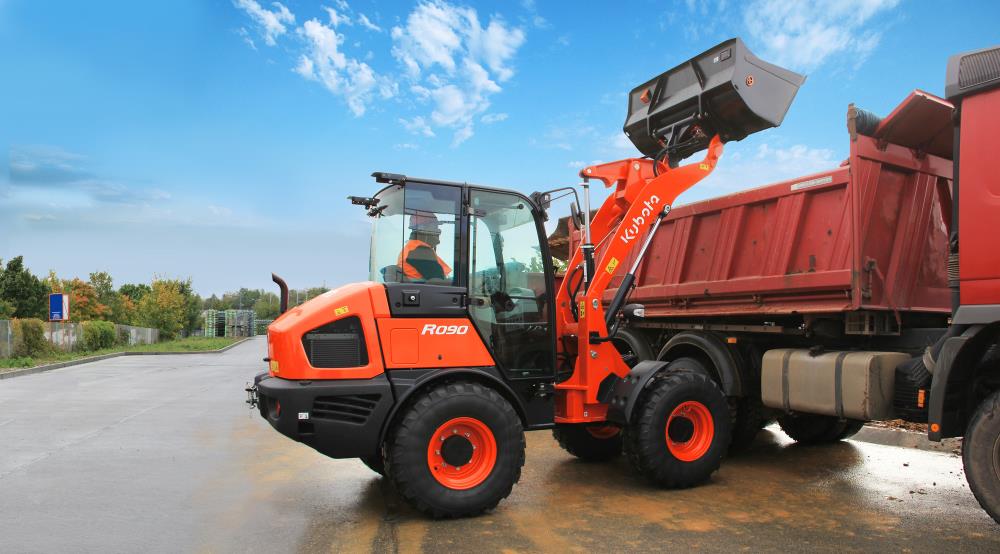

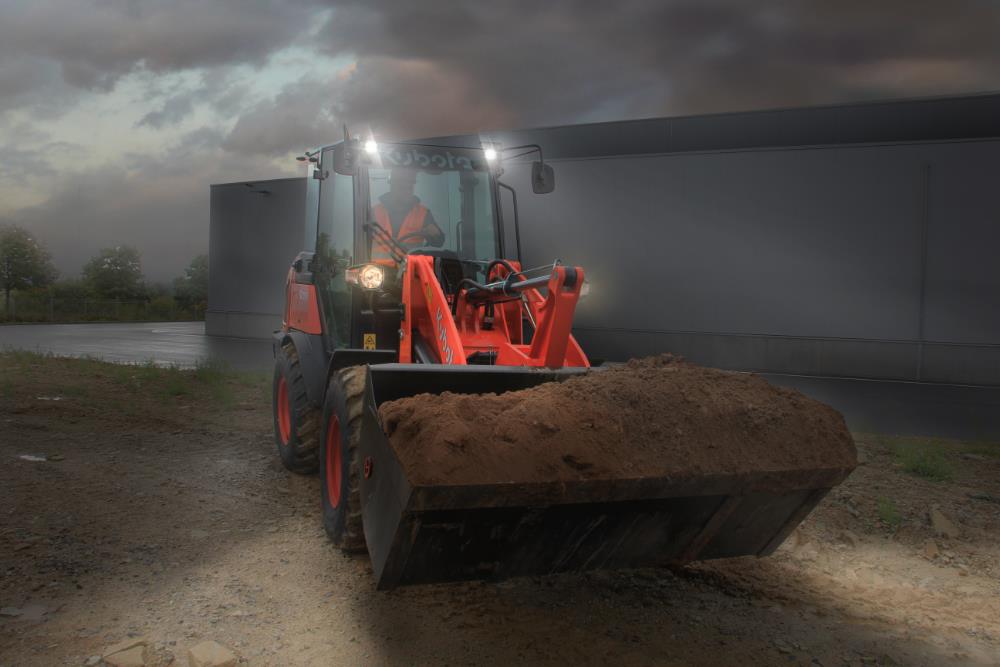

Kubota R090 Wheeled Loader
Powerful Performance Flagship. The Stage V R090 is a powerhouse built for efficiency. With a tipping capacity of up to 3440kg and a heavy-duty 64.3hp engine, it handles demanding site work with ease. This model emphasizes high lifting performance and superior operator visibility through its innovative Delta lift arm design.
R090 Highlights
Download Brochure
Technical highlights for the R070 & R090 series.
High Efficiency
- Engine: Kubota V2607 direct-injection Stage V diesel (64.3hp).
- Precision: Sensitive control system for delicate material handling [00:01:50].
- Quick Change: One-hand operation Kubota quick change system [00:00:42].
- Anti-Theft: Code-protected security system fitted as standard [00:01:32].
Superior Visibility
- Delta Frame: Unique arm design for an unobstructed view of forks [00:00:58].
- Glazing: Extended front glazing provides 360° panoramic awareness [00:00:23].
- Hose Routing: Optimized hydraulic hose routing to maintain sightlines [00:01:29].
- Side Windows: Fully extendable right window for improved ventilation [00:01:11].
Operator Premium
- New Console: Modern dashboard design with all switches to the right [00:01:26].
- Climate: Full cab air-conditioning and optimized rear wiper position [00:01:15].
- Maneuverability: Full control in even the tightest construction sites [00:01:02].
- Safety: High-visibility orange safety belt with warning function [00:01:34].
Technical Specifications
| Specification |
Kubota R090 |
| Engine Power |
64.3 hp (47.3 kW) |
| Machine Weight |
4945 kg |
| Max Tipping Load |
3440 kg (Full Turn) |
| Hinge Pin Height |
3230 mm |
| Hydraulic Flow |
67.2 l/min |
| Overall Width |
1820 mm |
SKU: .NR563530200
