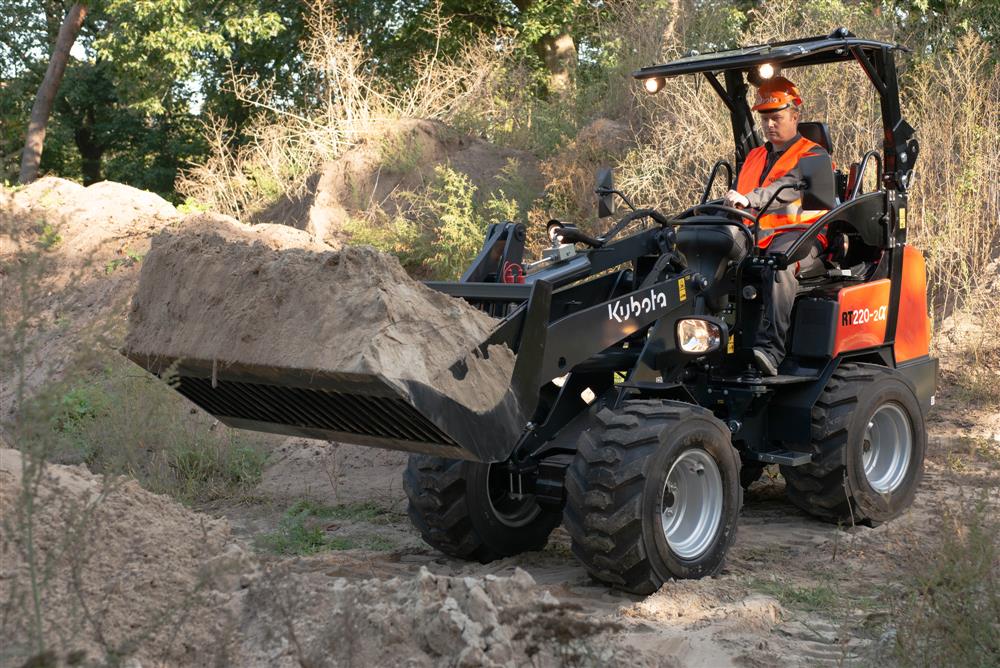

Kubota RT220-2a Wheeled Loader - Powerful, manoeuvrable, versatile.

These articulated wheel loaders are designed for the versatility you need on construction sites delivering power, safety and comfort.

SUPREME POWER
Kubota’s powerful Stage V engine delivers high power, class-leading fuel efficiency, low noise and reduced emissions.

POWERFUL OPERATION
With its pivoting articulation, high traction force and the ability to load up to 1225kg this loader can take on a wide range of loading tasks and terrain.

USER FRIENDLY CONTROL
A user-friendly designed multi-function lever provide simple control of all functions.

BUILT FOR COMFORT
Designed around the operator for long working days offering excellent visibility, an ergonomic control layout, excellent legroom and adjustable seat and steering column.

SAFETY FIRST
Available as canopy or canopy with rollover protection (ROPS) and falling objects protection (FOPS) as standard.

Model RT220-2a

Operating weight Canopy/Cab(kg) : 2350/2500
Power (kw) : 19
Transmission : HST
Max lifting capacity-straight (kg) : 1225
Max lifting height at hinge point (mm) : 2450
Overall Width (min/max) (mm) : 1080 - 1280
Overall Length (mm) (with bucket) : 3830
Overall height (mm) : 2300


ENGINE

• Powerful, reliable, and efficient with low emission Stage V Kubota V1505 4-cylinder engine
• 19Kw engine
• 37-litre fuel tank

HYDRAULICS

• Engine power is transmitted by Bosch Rexroth hydrostatic transmission (HST)
• Auxiliary hydraulic circuits (hand controlled)
• Kubota hydraulic quick couplers with multiple attachment options that increases the machines
  versatility.

VERSATILITY

• Articulated chassis with central pivoting point allows a 44° turning angle and a reduced turning radius of 2342mm (outer wheel).
• Oscillating chassis for improved traction
• Up to 3 auxiliary circuits available

PERFORMANCE

• Hydrostatic (HST) transmission is controlled by a single pedal offering precise control of travel speed particularly when working with front attachments.
• Hydrostatic 4-wheel drive and a maximum speed of 20 km/h.
• 8 tonne planetary axles (HD version) with 23.000 N pulling force
• Driveshaft between rear and front axles
• Electronically controlled differential lock on both axles as standard for extra traction in difficult conditions.
• The maximum reach height is 2450mm

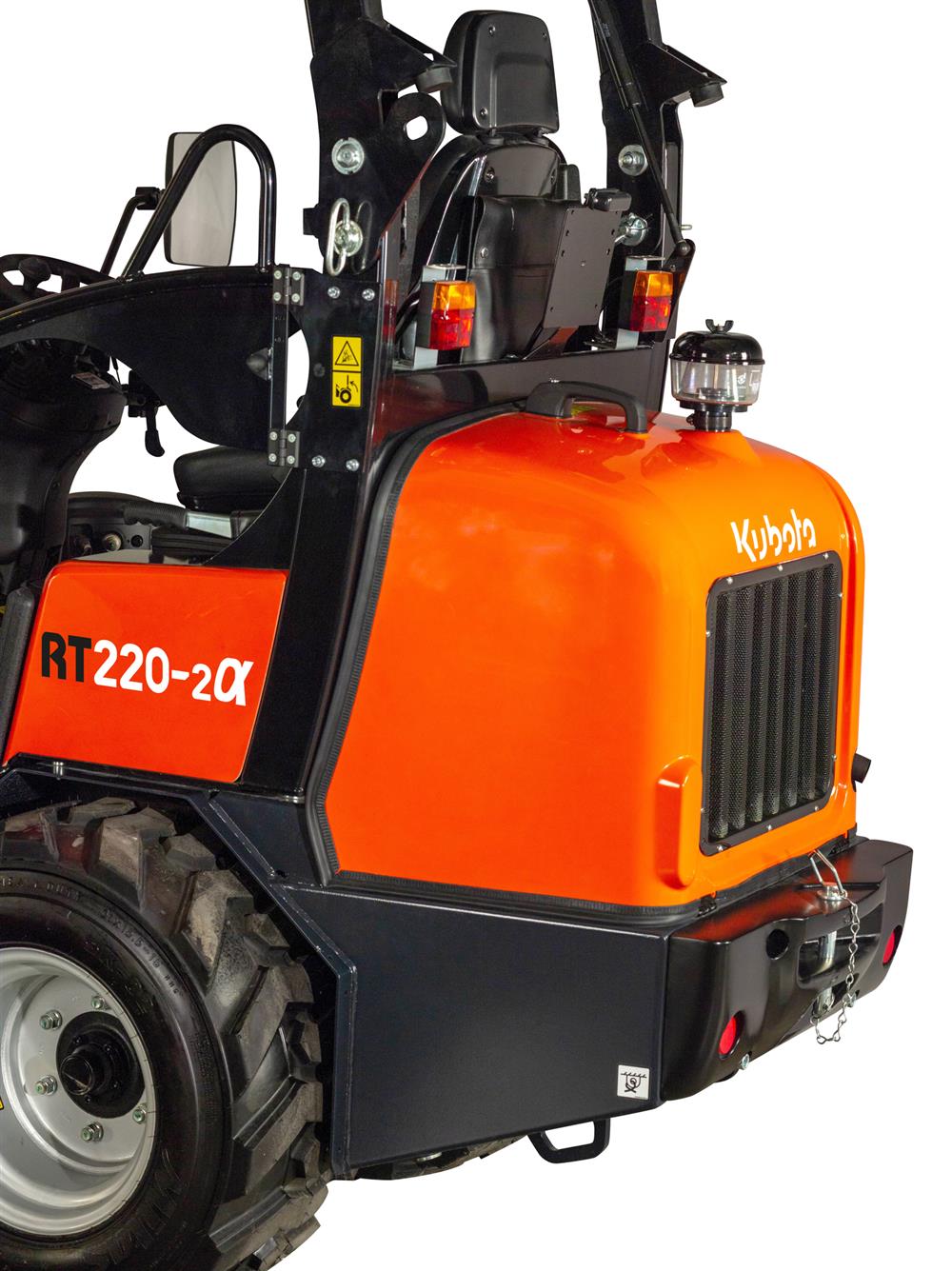

• Integral counterweight and tow hook to the rear of the loader. Optional counterweights are available for improved lifting and
  stability.

COMFORT

• Cab, Canopy or Folding Canopy options
• Spacious operating platform with good all-round visibility featuring a weight adjustable seat with arm and back rests
  and a tilt able steering wheel.
• The well insulated heated cab ensures low noise and vibration levels. In addition, a radio is included. Weight adjustable
  suspension seat.
• Ergonomic switchgear and user-friendly multi-function lever for control of all major functions. Optional hand throttle with inching feature OR PRO inching with travel pedal for precise movement and improved efficiency when using attachments.
• The instrument panel provides at-a-glance information of machine’s functions and conditions.

SAFETY

• ISO Roll-over Protective Structure (ROPS) and Falling Object Protective Structure) (FOPS) as standard. Flashing warning LED beacon light.
• Hi spec cab comes with 2 front and 2 rear work lights and side mirrors.
• Parallel indicator on the tilt cylinder option
• Safety valves on the lift and tilt cylinder are available as an option to prevent a load from falling in the event of a hose rupture.
• Highly visible orange safety belt
• Reversing warning buzzer.
