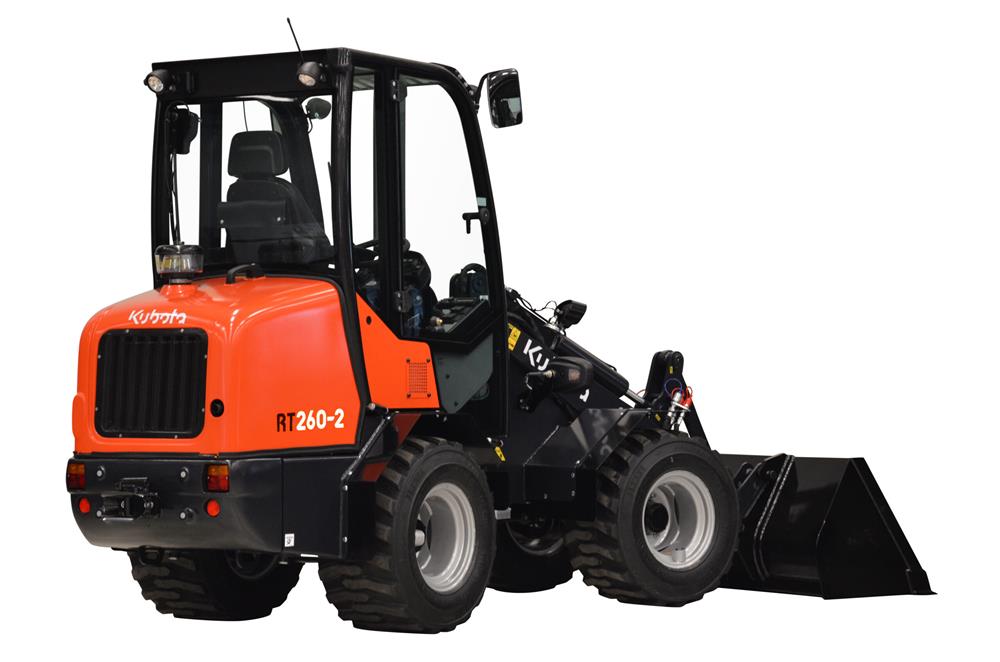

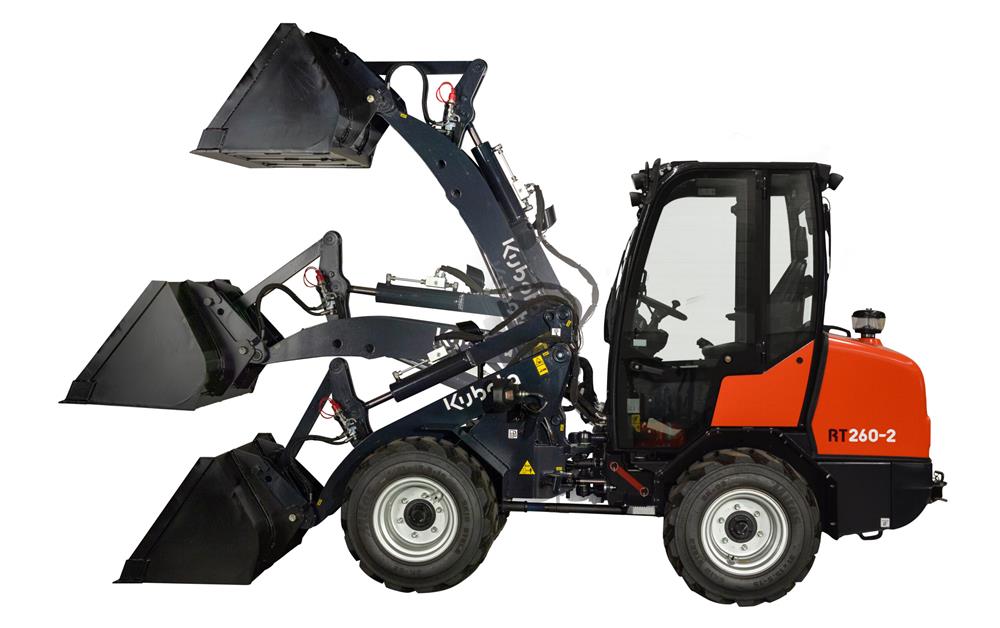

Kubota RT260-2 Wheeled Loader - Powerful, versatile loading

The RT260-2 has the power and versatility to take on heavy duty loading challenges, even in the toughest terrains.

EFFICIENT POWER
Fuel efficient and low emission Kubota V1505 Stage V 4-cylinder diesel engine with high performance hydraulics.

COMPACT VERSATILITY
Pallet fork lifting capacity of 1320kg, the articulated RT260-2 has the versatility to take on wide range of tasks.

SIMPLE CONTROL
All the main functions including shuttle switch, auxiliary circuit and front attachment functions are easily controlled by a user-friendly multifunction lever.

OPERATOR COMFORT
The deluxe cabin option is equipped with a heater, front and back working light, side mirrors and radio for ultimate year-round comfort and safety.

SAFETY BUILT-IN
Built-in safety features as standard include safety roof and doors, seatbelt, reverse warning buzzer, working lights and LED safety beacon plus ISO certified ROPS/FOPS protection.


Model RT260-2

Operating weight Canopy/Cab(kg) : 2475/2680
Power (kw) : 19
Transmission : HST
Max lifting capacity-straight (kg) : 1320
Max lifting height at hinge point (mm) : 2498
Overall Width (mm) : 1100 - 1360
Overall Length (mm) (with bucket) : 4085
Overall height (mm) : 2322


ENGINE

• Powerful, reliable, and efficient with low emission Stage V, 4-cylinder (1498cc) Kubota V1505 diesel engine with automatic DPF regeneration.
• 30-litre fuel tank

HYDRAULICS

• Engine power is transmitted by Bosch Rexroth hydrostatic transmission (HST)
• Auxiliary hydraulic circuits (hand controlled)
• Kubota hydraulic quick couplers with multiple attachment options that increases the machines versatility

VERSATILITY

• Articulated chassis with central pivoting point allows a 45° turning angle and a reduced turning radius of 2623mm (outer wheel).
• Oscillating chassis for improved traction
• Up to 3 auxiliary circuits available

PERFORMANCE

• Hydrostatic (HST) transmission is controlled by a single pedal offering precise control of travel speed particularly when working with front attachments.
• Hydrostatic 4-wheel drive with limited slip-differential on both axles.
• Maximum speed of 20 km/h.
• 8 tonne axles with drive shaft between rear and front axles
• The maximum hinge height is 2498mm
• Integral counterweight and tow hook to the rear of the loader. Optional counterweights are available for improved stability.

COMFORT

• Cab, Canopy or Folding Canopy options (fully glazed on high-spec models) Spacious operating platform with good all-round visibility featuring a weight adjustable seat with arm and back rests and a tiltable steering wheel.
• The well insulated heated cab ensures low noise and vibration levels. In addition, a radio is included. Air-suspension seat available as option.
• Ergonomic switchgear and user-friendly multi-function lever for control of all major functions.
• Optional hand throttle with inching feature OR PRO inching with travel pedal for precise movement and improved efficiency when using attachments.
• The instrument panel provides at-a-glance information of machine’s functions and conditions.

SAFETY

• ISO Roll-over Protective Structure (ROPS) and Falling Object Protective Structure) (FOPS) as standard. Flashing warning LED beacon light.
• Hi spec cab comes with 2 front and 2 rear work lights and side mirrors. Parallel indicator on the tilt cylinder option
• Safety valves on the lift and tilt cylinder are available as an option to prevent a load from falling in the event
  of a hose rupture.
• Highly visible orange safety belt
• Reversing warning buzzer.

MAINTENANCE

• All filters and daily check points are easily accessible with a wide opening engine bonnet and a tilting cab for unrivalled service access.
• The engine maintenance interval is 500 hours.
