Kubota RT160-2 Wheeled Loader
Strong, Compact & Versatile. The Kubota RT160-2 is engineered to lift heavy loads despite its small footprint. Known for its maneuverability and reliability, this loader is the ideal choice for demanding tasks in tight spaces, offering high performance with low noise and emissions.
Product Documentation
Download Brochure
Technical specifications and series overview.
Reliable Performance
- Kubota Engine: 19kW engine renowned for durability and fuel efficiency.
- Drive System: Permanent 4-wheel drive for superior traction on all surfaces.
- Transmission: Hydrostatic (HST) for smooth, effortless speed control.
- Eco-Friendly: Designed for low noise and reduced emissions.
Heavy Load Carrier
- Lifting Capacity: Maximum straight lifting capacity of 750kg.

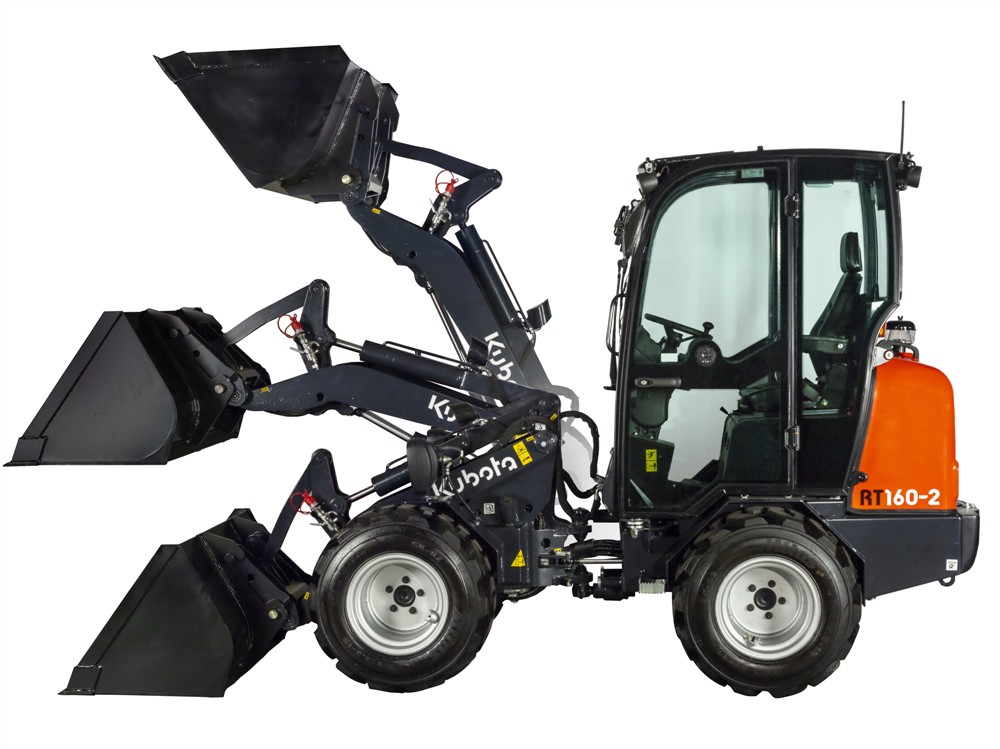

- Reach: Maximum hinge pin height of 2070mm for easy loading.
- Agility: 44° articulated turning angle for work in confined areas.
- Compact: Narrow width starting at just 1100mm.
Operator Comfort
- Cab Options: Available with canopy, foldable canopy, or a deluxe heated cab.
- Deluxe Features: Cab version includes glazing, radio, and four working lights.
- Safety: ISO approved ROPS/FOPS protection across all configurations.
- Ergonomics: Designed to minimize fatigue during long working days.
Technical Specifications
| Specification |
Kubota RT160-2 |
| Operating Weight |
1600kg (Canopy) / 1805kg (Cab) |
| Engine Power |
19kW |
| Max Lifting Capacity (Straight) |
750kg |
| Max Height (Hinge Point) |
2070mm |
| Overall Width |
1100mm |
| Overall Length (with bucket) |
3390mm |
SKU: .NRT160-2
