Oxdale SE400 Petrol Powered Log Splitter

The SE400 is an engine driven log splitter powered by a Honda GX200 engine.

This machine is also fitted with a dual speed hydraulic pump.

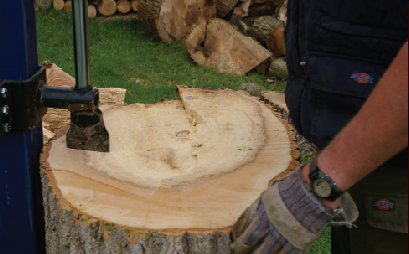

When combined with the unique axe-head (see photo below), it allows a 10 tonne capacity ram to be fitted which makes the splitting operation very quick. The SE400 is easily moved around on pneumatic tyres and only has a width of a meter. Hydraulic log splitter driven off a 6.5hp Honda petrol engine 10 tonne splitting force.

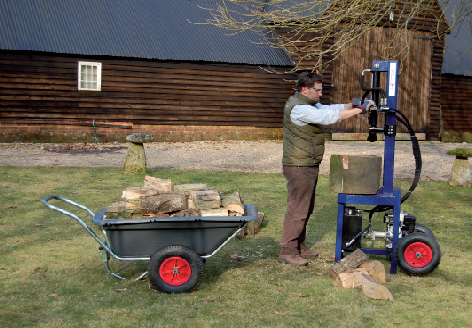

The log splitter has been designed to be easily wheeled by hand to the location where it is to be used.The log splitter can be used in any different number of locations from the back garden to the paddock beside the wood shed.

Powerful enough to cope with the most demanding of splitting jobs. The splitting wedge is specially forged, hardened and has a double chamfer to give the best splitting action available on the market.

For added safety all the hydraulic pipes are covered in anti burst lagging and both hands are required on the lever to operate the ram. Lifting the lever will power the splitting wedge through the logs and lowering the lever will retract the ram. It takes under ten seconds to make a complete cycle of the ram.

The platform is self cleaning of large logs. Capable of splitting logs up to 18 inch high and is not limited to the width of logs it can split


Specification

Horsepower: 5.5bhp at 3600rpm
Weight: 95 kgEngine: Honda GX200
Max operating pressure: 4780 psi/330 bar
Fuel consumption: 1.9 l/hr
Ram bore diameter: 60 mmRam stroke: 400 mm
Noise level: <104 db
