Reduced to clear - £1,250 inc VAT
(Down from £1,500 inc Vat)

JANSEN 14 TON LOGSPLITTER TRACTOR MOUNTED HYDRAULIC HORIZONTAL  TS-14L105

(Please note that stock units are held at our yard in crate form, as a result assembly and despatch on these units is 1-2 weeks from date of order. Kindly consider this when ordering. )

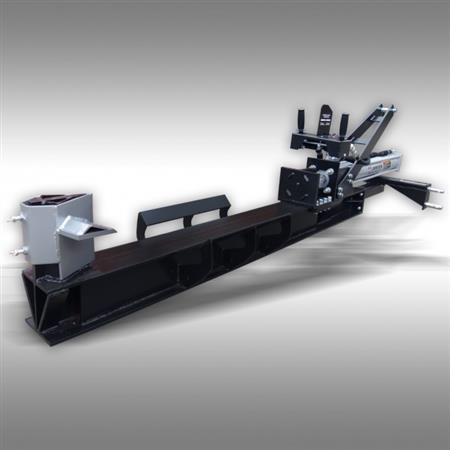

This very compact and powerful tractor mounted log splitter reaches a splitting force of 14 tons and will split any piece of wood!

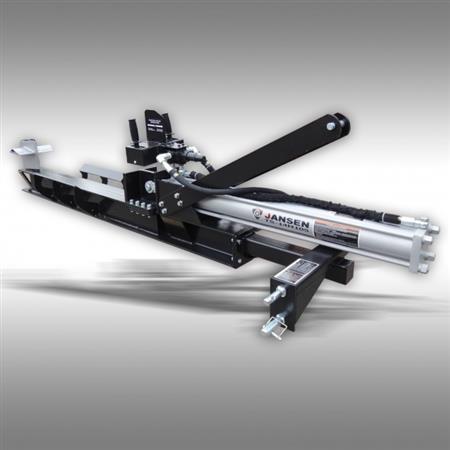

The splitter can be simply fitted to the 3-point linkages of your tractor/unimog etc. (ISO cat 1 and 2 linkages). It is operated using the hydraulic connections of the vehicle, a supply and return line is required for this (return line must be free of pressure). The splitter is easily mountable at the desired height using the 3-point hitch.

This tractor mounted log splitter has a huge ram stroke of 105 cm and a cylinder stroke of 100 cm. The cylinder needs 10 seconds for a complete forward phase and 9 seconds to return.

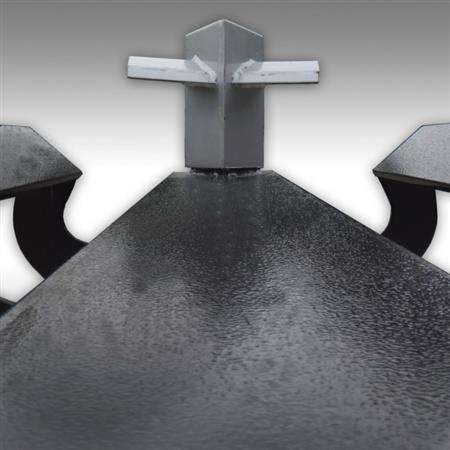

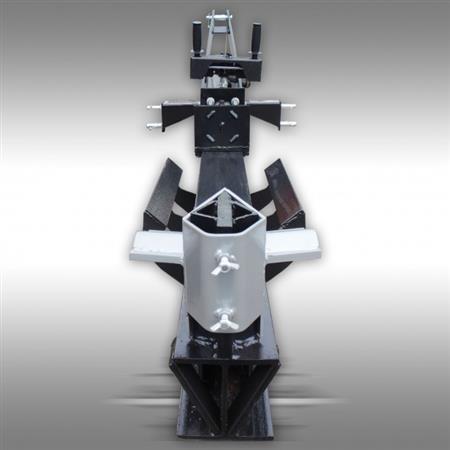

The somewhat different technique using this splitter will guarantee you a high working speed: The wood is forced by the cylinder onto the wedge and can fall behind, having been split. If a piece of wood should become stuck on the splitting wedge or 4-way splitting wedge, you can simply continue with the next piece which will free the way again! The cylinder automatically returns to the start position so that you don’t have to hold the lever. Additionally, you can stop the lever in any position, as well as return to the start position. The full splitting force is always applied. Many other splitters need to return the cylinder to the start position, which costs a great deal of time.

Technical specifications:

• Drive: hydraulic, 2-stage (via tractor)
• Weight: approx. 214 kg (dry)
• Splitting force: 14 tons
• Scope of delivery: 4-way wedge and splitting wedge
• Oil pressure: Approx. 175 bar with 14t
• max. oil flow rate: 41.6L/min.
• max. log opening: 1050 mm
• Cylinder bore: 100 mm
• Cylinder running time: forward 10s, back 9s
• Tractor linkage: Cat. 1 and Cat. 2 (bolts included)
• Dimensions: 2690x860x750 mm
• Dimensions of packaging: 2090x490x630 mm
• Weight including packaging: 246 kg

Please note that all Jansen equipment is sold subject to these conditions in addition to our standard T&C's
