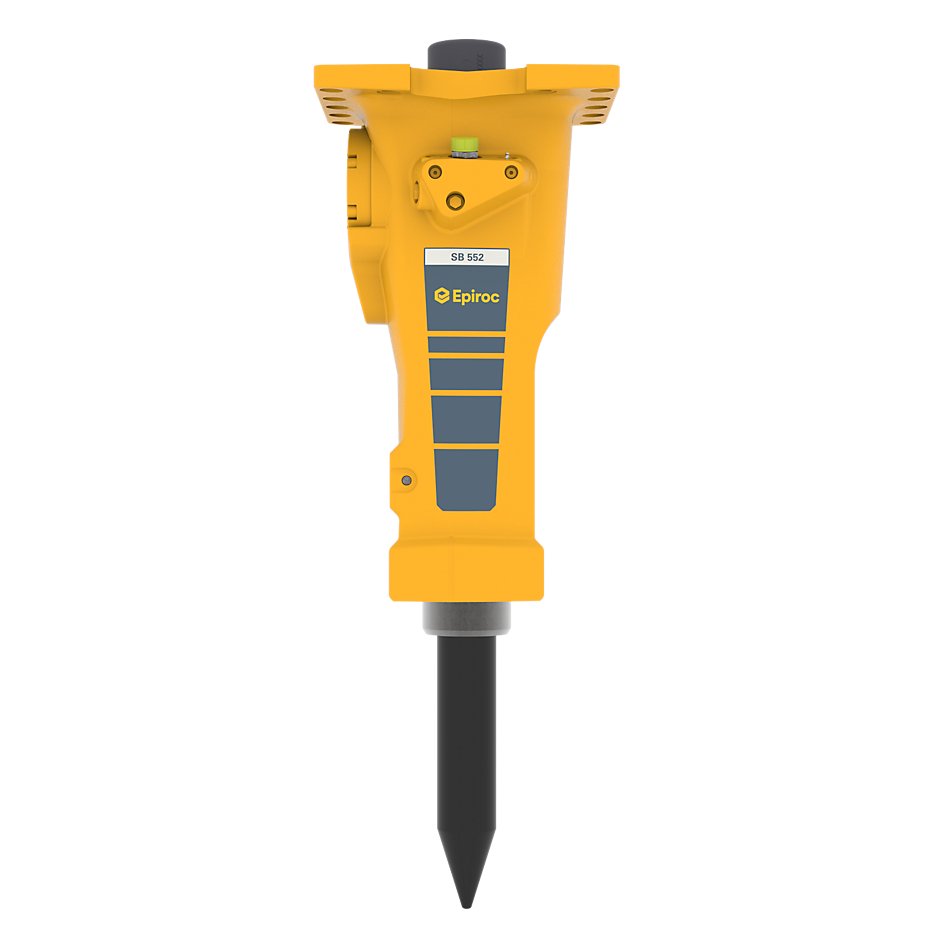

Epiroc Concrete Breaker SB 552

Everything you want from a small rock breaker

• Optional ContiLube (TM) II micro, water nozzles.
• High efficiency & performance
• Blank firing protection

SB hydraulic breakers are slim, compact and simple to handle, making them extremely versatile. Combining superior efficiency and performance with high reliability and serviceability. Choose a SB hydraulic breaker as your partner for a huge range of tasks. Suitable for most carriers like excavators, backhoe and skid steer loaders as well as demolition robots, it will get the job done – quickly and economically!

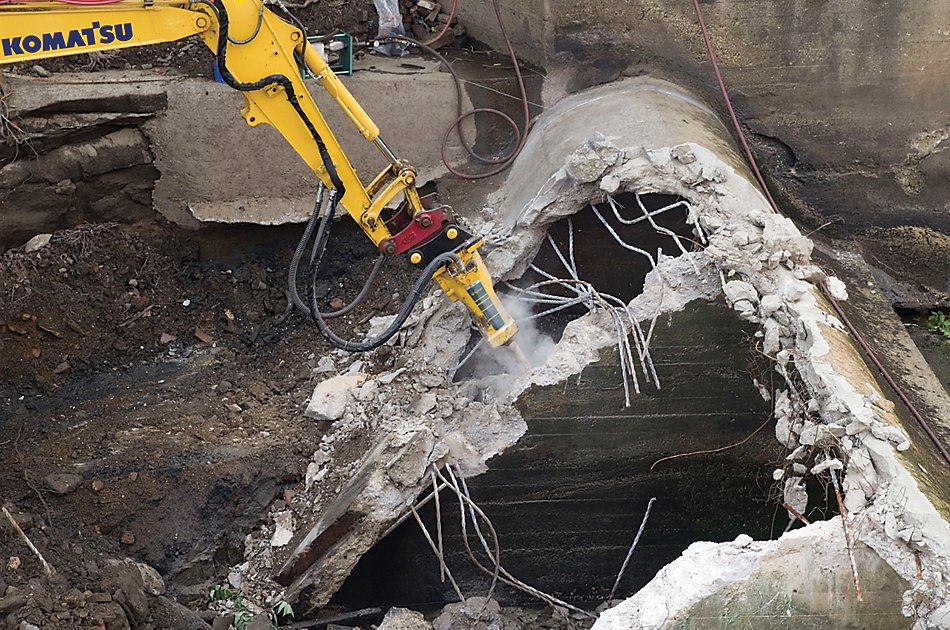

A solid choice our SB concrete breakers Solid Body Breakers are perfect for demolishing light concrete structures and asphalt pavements, both outdoors and indoors, performing earthworks, scaling in underground operations, and cleaning ladles and converters in foundries.

Carrier weight class ¹ 9 t - 15 t
Service weight ² 520 kg
Working tool diameter 100 mm
Working length of tool 495 mm
Hydraulic input power, max 29 kW
Oil flow 65 l/min - 115 l/min
Operating pressure 100 bar - 150 bar
Impact rate 650 blows/min - 1 150 blows/min
Sound power level, guaranteed ³ 126 dB(A)

¹ Any variances must be agreed with Epiroc and/or the carrer manufacturer prior to attachment.
² Attachment with standard working tool average-sized adapter plate.
³ EN ISO 3744 in accordance with directive 2000/14/EC

Inventor´s experience

Epriroc introduced the innovative hydraulic breaker 50 years ago. And it transformed the construction and mining industry

What you get

Everything you want from a excavator jack hammer: high efficiency and performance, low noise and vibration

One for every excavator

Epriroc turn your excavator of 0.7-140 tons into a versatile tool for demolition, trenching, rock excavation, mining and many more applications.

History of the excavator hydraulic hammer

Hydraulic breakers are the oldest hydraulic attachments for carriers. The first serial manufactured rock breaker was the Krupp HM 400 in 1967 and the patent was secured in 1963. Excavator jack hammers are impact devices designed to break any kind of rock or concrete with any hardness or physical property. They have a wide range of applications such as demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation work, asphalt cutting and many others.

Today Epirocs excavator hydraulic hammers are available from ~ 50 kg to more than 10,000 kg of operating weight for any kind of carrier. Over sixty years of development of the breaker hammers has produced advances at different levels, such as self-lubricating systems, sound & vibration damped systems, automatic rock hardness adjusting systems, energy recovery, solid body concept and much more.
