Exac One Grab N Drive

A REAL DRIVING FORCE

THE CONCEPT

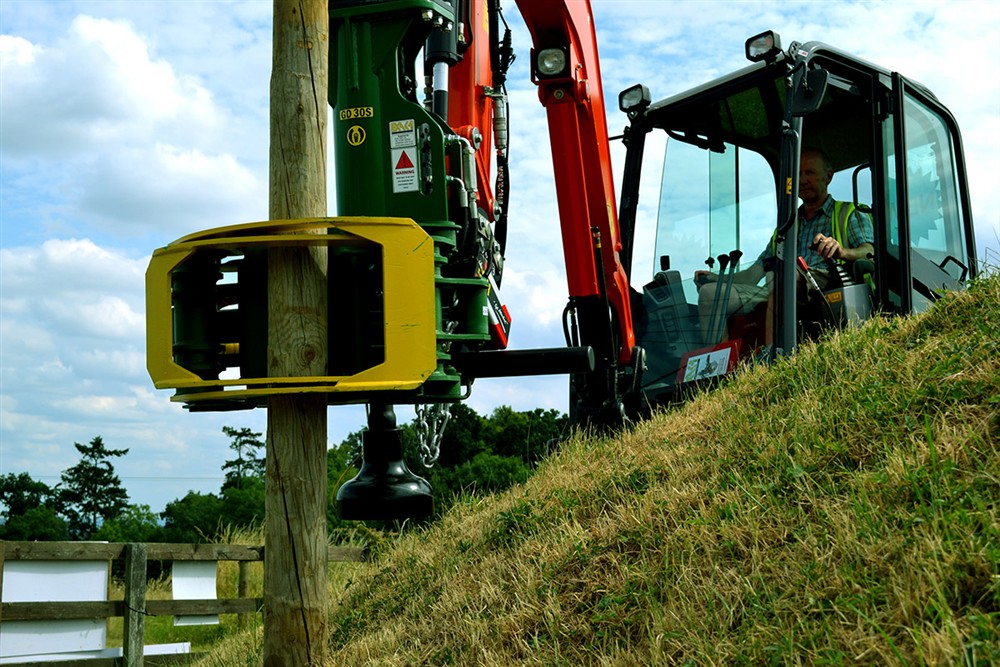

Grab N Drive is the latest concept in post driving. Designed by Exac-One and manufactured in the UK, this modular system allows an excavator operator to handle, place and drive posts without the assistance of a banksman. If required, the grab unit can be removed in minutes and a top-mounting bracket fitted to the breaker to enable its use in a traditional manner.

• Designed and manufactured in the UK - to suit a range of excavators From 1.5 to 9 tonnes
• Manufactured using high grade steel - for exceptional durability
• Modular design - simply add or remove the required module to suit the job in hand Multi use - drive posts and piles or break rock and concrete
• One man operation - no banksman required

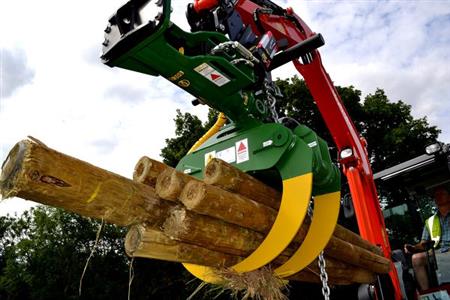

• Pick and place your post - can handle single or multiple posts
• Low maintenance - it really is…
• Designed for safety - position and drive posts without manual involvement
• Environmentally sensitive - noise and vibration suppressed

Supplied With

• Mounting bracket
• Hoses excluding
• QR fittings
• Driving tool
• Breaker chisel

Additional Options

• Diverter kit
• Rock spike
• Tilting device

Hydraulic Requirements

• 1 x Double acting circuit

MODELS & TECH SPEC

Model | Carrier Weight (t) |  Weight (kg) |  Oil Flow (l/m) |  Oil Pressure (bar) |  Dimensions H x W x D (mm)
GD10S |  1.8 – 3 |  250 |  14 – 30 |  120 |  1180 x 660 x 920
GD20S |  2.5 – 5 |  305 |  25 – 40 |  90 |  1180 x 660 x 940
GD30S |  4.5 – 9 |  325 |  30 – 45 |  110 |  1300 x 660 x 990
GD40S |  7.5 – 14 |  420 |  45 – 65 |  110 |  1450 x 660 x 1080
