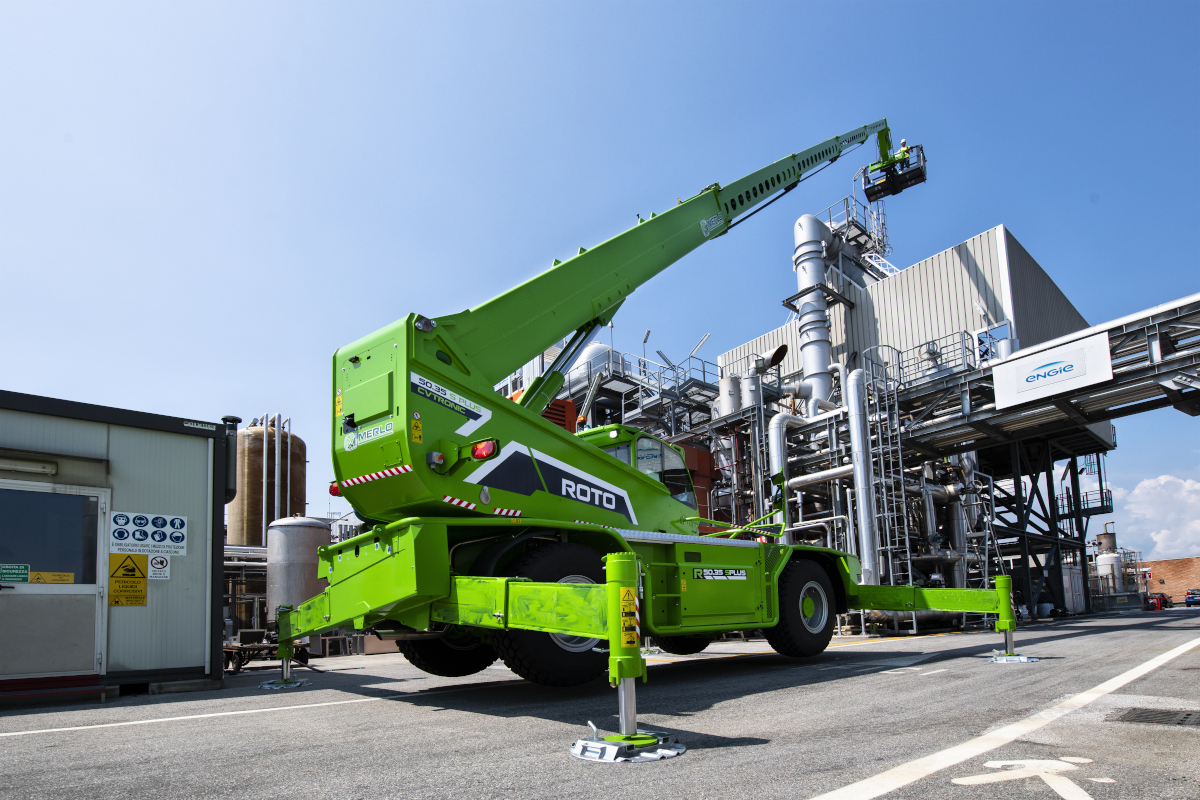

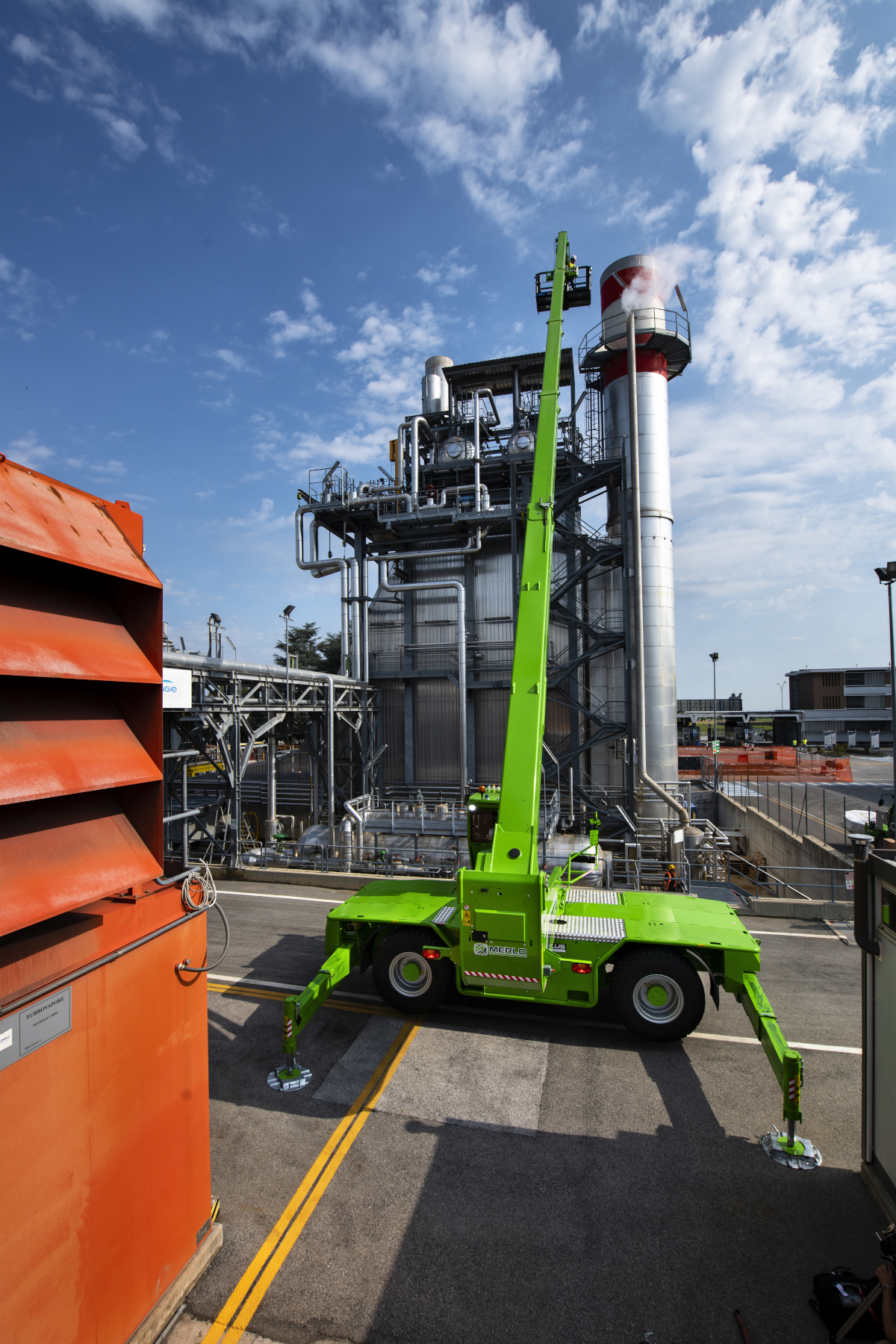

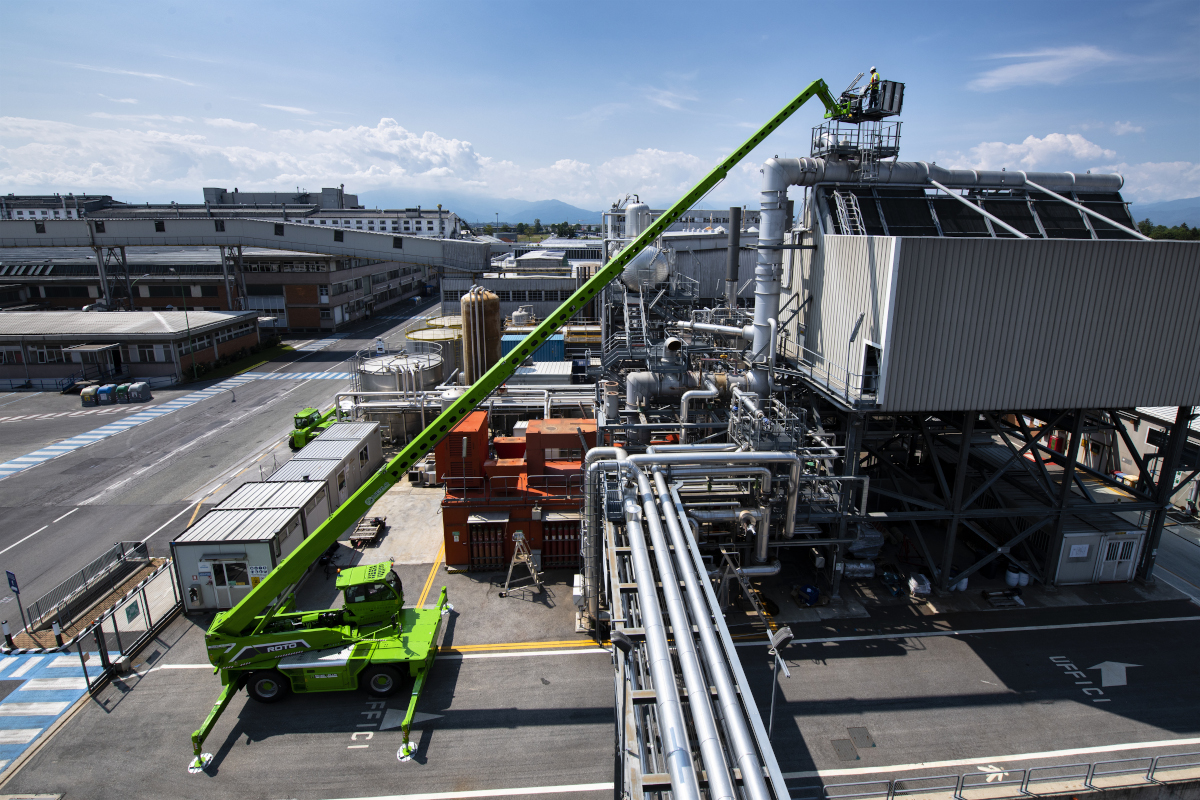

MERLO ROTO 70.24 S-PLUS TELEHANDLER

Contact us for a price

Enquire

The 70.24 S-Plus is a high-capacity specialist designed for heavy-duty construction and industrial tasks.

Max Lift Capacity: 7,000kg
Max Lift Height: 24 Meters
Rotation: Continuous 360° turret operation.
Stabilisers: Multi-position with automatic self-levelling and self-stabilisation.

Equipped with double Load Sensing and Flow Sharing pumps for simultaneous, millimetric movement.

Engine: FPT 4.5 125kW/170HP Stage IV.
Hydraulics: Double pumps (140+100 l/min – 250/230 Bar).
EPD TOP: Electronic engine management reduces fuel consumption by up to 18%.
Transmission: Hydrostatic for smooth, precise control.

Features the 20° longitudinal tilting cab and intelligent axle suspension for superior comfort at height.

Tilting Cab: Longitudinal inclination of 20° for monitoring loads at full extension.
Suspension: Intelligent hydropneumatic system (12% lateral / 4% front levelling).
MCDC: Dynamic Load Control with real-time mapping on a new LCD display.
Grammer Seat: Warmed premium seat included as standard.

Download technical documentation and the full range of Merlo-developed attachments for the Roto 70.24 S-Plus.

Video not loading? Use the link below:

High-spec extras come as standard on this model, along with expert Isle of Wight delivery and setup.

SKU:.NROTO 70.24 S-PLUS
