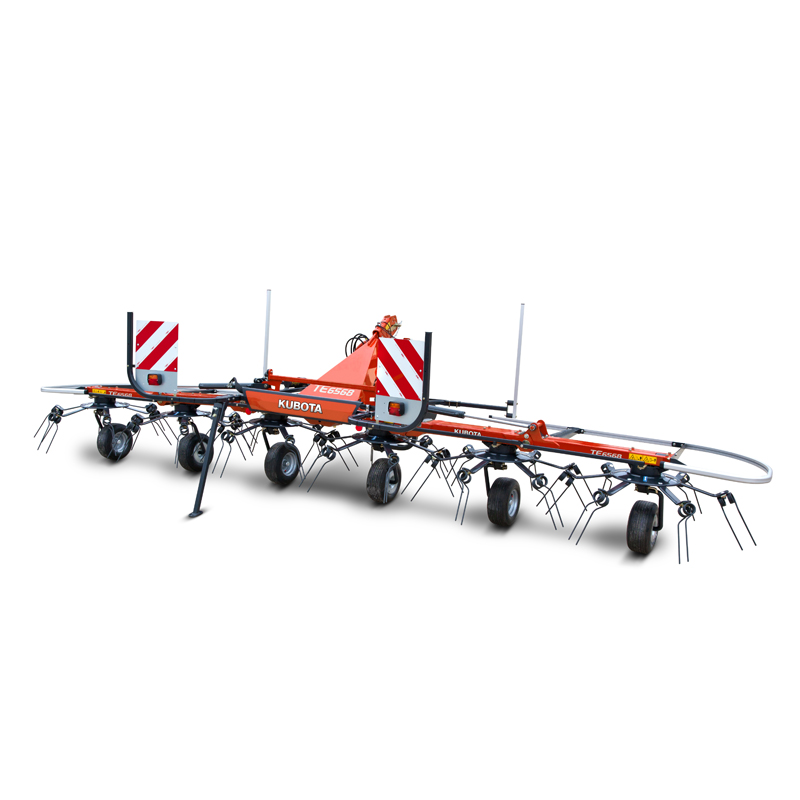

Kubota TE4555 – TE8590 Tedder Range
Professional Performance with ProLine Technology. The Kubota ProLine tedder range is engineered for high-output operations that demand durability and maximum uptime. With working widths from 5.5m to 9.0m, these models feature the heavy-duty ProLine gearbox and a robust chassis designed to handle the most demanding crop conditions and intensive use.
Maintenance-Free Drive
- ProLine Gearbox: Fully closed, oil-immersed gearbox for ultimate reliability.
- Permanent Lubrication: Designed for intensive use with zero maintenance required on the driveline.
- V-Chassis: Strong, V-shaped central unit built for high-speed stability and longevity.
- U-Joint Drive: Efficient power transfer through double U-joints for maximum performance.
Aggressive Crop Turning
- Super-C Tines: Built with 10mm shot-peened spring steel for extreme resilience.
- Flat Steel Arms: Large diameter tine arms made from flat steel for heavy crop loads.
- High Capacity: Optimized rotor diameter for a perfect spread pattern and faster drying.
- Border Spreading: Mechanical or optional hydraulic setting to keep forage within the field.
Stability & Comfort
- Oscillation Dampers: Large, heavy-duty dampers provide excellent tracking and stability.

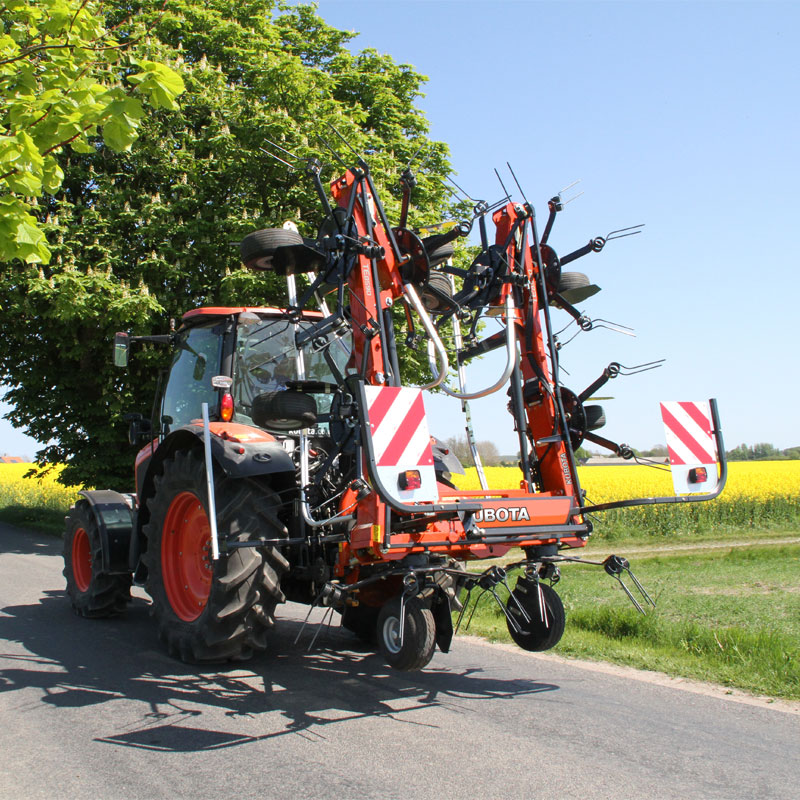

- Compact Transport: Innovative folding design ensures transport height stays below 3.52m.
- Rugged Build: Professional-grade construction for farmers and contractors.
- Clean Pick-up: Equal length tines ensure uniform load and clean forage collection.
Technical Specifications
| Model |
Working Width |
Rotors / Tine Arms |
Weight |
| TE4555 |
5.50 m |
4 / 7 |
620 kg |
| TE6568 |
6.80 m |
6 / 6 |
900 kg |
| TE6576 |
7.60 m |
6 / 7 |
990 kg |
| TE8590 |
9.00 m |
8 / 6 |
1260 kg |
Explore the ProLine Lineup
Experience superior forage quality with Kubota's professional-grade ProLine series.
View Technical Data
SKU: .NTE4555-8590
