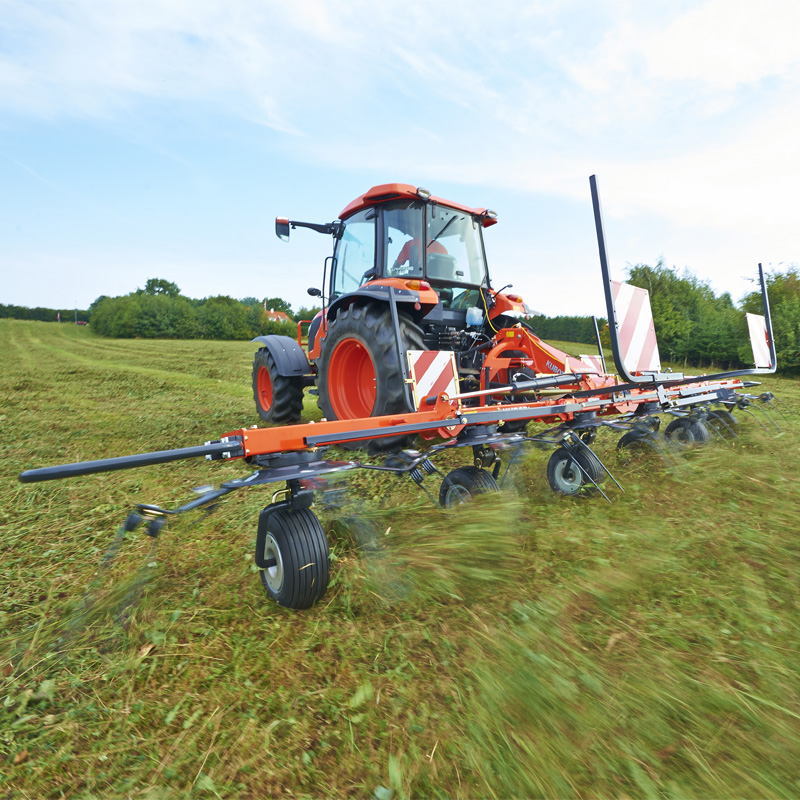

Kubota TE4046-TE4052-TE6060-TE8080 Tedders

Compact tedders with low maintenance and 4.6 – 8.05m working width.

Compact and Robust Design

Kubota offers 4 versions of compact tedders with low maintenance requirements and a working-width ranging from 4.6 to 8.05m. Maintenance-friendly features include 500 mm rotor plates and an easy-to- maintain gearbox. All tedders can be adjusted centrally to move the tedder to the desired position for border tedding.

TE8080 is fitted with a HexaLink finger clutch system on the two outer rotors, allowing these to turn into a 180° position for a reduced transport height and width of 3.15m and 2.9m respectively.

The Advantages:

• Low maintenance CompactLine gearbox with only one grease nipple.
• Compact tedders with low weight and power requirements.
• Rotor plate dimension of 500m.
• Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.
• Easy setting of spreading angle through simple three-way adjustment of wheel height.
• HexaLink finger clutch on TE8080 for very compact transport dimensions.
• Oscillation dampers for even spreading pattern standard on TE6060 and TE8080.

Technical specifications

Model | Working Width |  No. of Rotors/No. of Tine Arms |  Weight
TE4046 |  4.60m |  4/5 |  500kg
TE4052 |  5.20m |  4/6 |  530kg
TE6060 |  6.05m |  6/5 |  680kg
TE8080 |  8.05m |  8/5 |  950kg
