Towmate Ram General Duty Trailer Range
Raising the Standard for Versatility. The Towmate Ram (TXGD) series represents the pinnacle of British-built general-purpose trailers. Engineered for durability, these trailers are available in lengths from 8ft to 12ft and widths from 4ft to 6ft. Whether you choose the reliable **Standard Range** or the innovation-packed **Pro Range**, you are investing in a modular, hot-dipped galvanised workhorse designed to symbolise the versatility expected from professional equipment on the Isle of Wight.
Standard Range Features
- 1 Year Warranty: Reliable quality assurance as standard.
- LED Dual Voltage: Shatter-resistant, high-efficiency lighting for all-weather visibility.
- Modular Chassis: Precision-built frame allows for future customisation and rapid repairs.
- Integrated Side Steps: Heavy-duty steel with bespoke high-grip protrusions for safe 3-point contact access.
- 2.5T Lashing Points: 8 retractable points that tuck away to leave a clear, easy-to-clean deck.
Pro Range Innovations PRO
- 3 Year Warranty: Extended commercial-grade protection for high-usage operations.
- Pivot Axle System: Unique innovation ensuring all four wheels maintain ground contact, preventing axle overload.

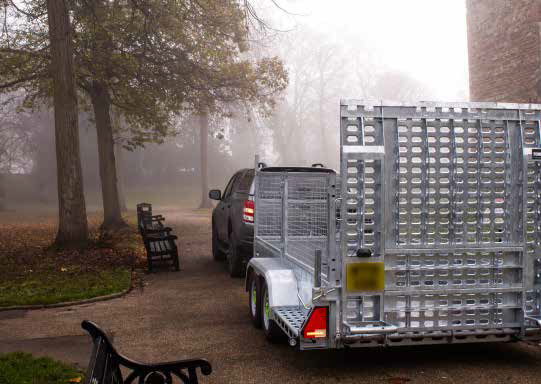

- Double Angle Ramp: Softens the loading angle, removing the "lurch" when machinery enters the trailer bed.
- Gas-Assisted Ramp: Horizontal struts make lifting a full-width ramp a true one-man operation.
- Hinged Mesh Sides: Tool-free removal and centre-post latching for quiet, vibration-free travel.
Design Deep Dive

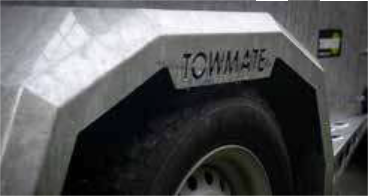

- Heavy-Duty Mudguards: Fully welded steel construction designed to act as a load-bearing access surface.
- Cast Coupling Head: High-security 50mm locking head (standard) or 40mm eye (optional) at no extra cost.

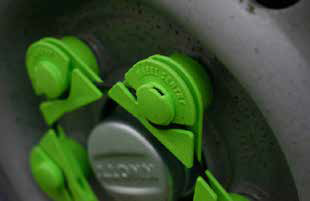

- WheelSentry®: PRO Combined indicator and retainer system to visually verify wheel nut security.
- Galvanised 340mm Sides: Durable steel sides provide a strong foundation for the optional mesh kit.
Local Support & Payment
- Isle of Wight Service: Fully PDI'd and handed over by the Stubbings Bros specialist team.
- On-Island Parts: Standardised components stocked at our depot to ensure minimum downtime.
- Secure Transaction: Safely process your order via our integrated PayPal payment system.
- Custom Quotes: Contact us for specific configurations tailored to your professional needs.
Request Quote
Pro Range Specifications (3 Year Warranty)
| Model | Gross Weight | Payload | Internal Dimensions (L x W) |
|---|
| TXGD084-35 | 3500 kg | 2917 kg | 2465 x 1180 mm |
| TXGD085-35 | 3500 kg | 2893 kg | 2465 x 1430 mm |
| TXGD105-35 | 3500 kg | 2853 kg | 2965 x 1430 mm |
| TXGD106-35 | 3500 kg | 2829 kg | 2965 x 1730 mm |
| TXGD125-35 | 3500 kg | 2813 kg | 3580 x 1430 mm |
| TXGD126-35 | 3500 kg | 2829 kg | 3580 x 1730 mm |
Standard Range Specifications (1 Year Warranty)
| Model | Gross Weight | Payload | Internal Dimensions (L x W) |
|---|
| TGD084-27 | 2700 kg | 2210 kg | 2465 x 1180 mm |
| TGD085-27 | 2700 kg | 2186 kg | 2465 x 1430 mm |
| TGD105-27 | 2700 kg | 2150 kg | 2965 x 1430 mm |
| TGD105-35 | 3500 kg | 2890 kg | 2965 x 1430 mm |
| TGD106-27 | 2700 kg | 2126 kg | 2965 x 1730 mm |
| TGD106-35 | 3500 kg | 2866 kg | 2965 x 1730 mm |
Dependable. Versatile. Durable.
British strength for the modern job site. Contact Stubbings Bros for professional trailer advice.
SKU: .NTOWMATE_RAM
