TORO GREENSPRO-1260 GREENS ROLLER

The new GreensPro 1260 is the next evolution of greens roller.

With enhanced features like the hydraulically driven drive roller the GreensPro 1260 reduces the maintenance required with the older chain drive systems. The GreensPro 1260 delivers exceptionally smooth and fast greens with a superior operator platform.

The split overlapping, contour following smoothing rollers perfectly follow undulations delivering exceptionally smooth putting surfaces. The operator platform is fully adjustable for unmatched comfort and operator safety. The new transport system featuring a QuickLatch coupler makes transporting from green to green unbelievably quick and simple.

Specifications

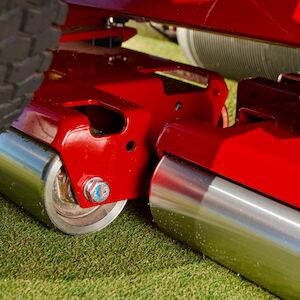

Split Smoothing Rollers

Minimizes stress on the greens when turning.

Overlapping Smoothing Heads

Provides full width roller coverage with no unrolled areas during every pass.

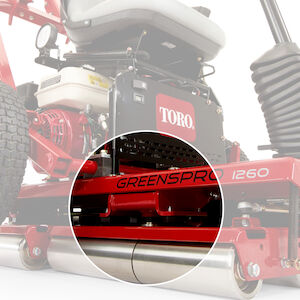

Ball Joint for Smoothing Head Connection

Provides better smoothing head articulation with minimal maintenance.

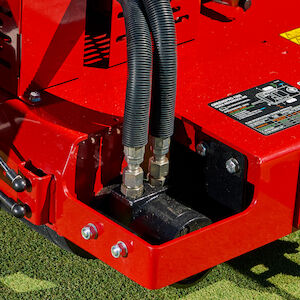

Hydraulic Drive Roller

Increases reliability and removes high maintenance normally seen with a chain and sprocket design.

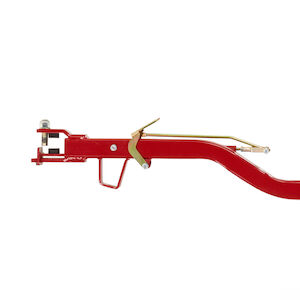

QuickLatch Coupler

Easy for the operator to attach roller to vehicle with one hand.

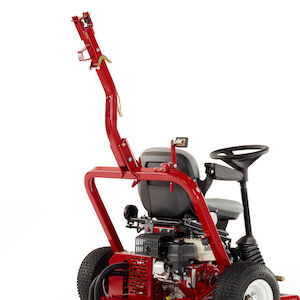

Light Tongue Weight

Reduces stress on operators back and makes the machine easy to maneuver.

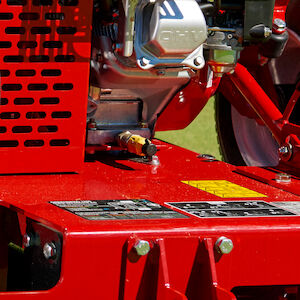

QuickConnect Oil Drain

Minimizes the time required to change engine oil.

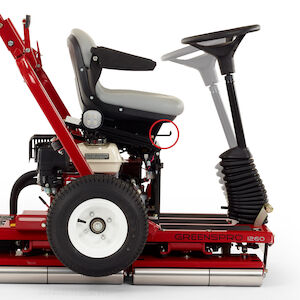

Bidirectional Seat Adjustment & Tilt Steering

High-back seat is adjustable and steering wheel tilts up to 40 degrees to easily achieve best ergonomic position for the operator.

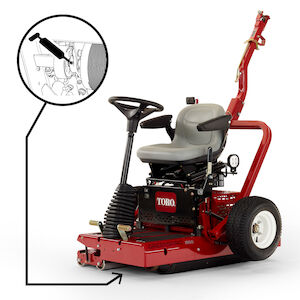

1 Grease Point

Minimizes time required for maintenance.

---

Specifications

Contour Follow : Yes
Controls : Tilt steering wheel, directional foot pedals, hand parking brake, engine stop switch, recoil, choke, fuel shut off, light switch, and hour meter.
Drive : Parker hydraulic motor to drive roller
Engine : Honda® GX200 5.5 hp (4.1 kW) @3600 RPM, air-cooled, 4-stroke OHV; mechanically governed.
Fuel : Unleaded gas
Ground Pressure : 3.75 PSI (0.26 Bar)
Ground Speed : Roll: 0 - 8 mph (0 - 12.8 km/h) in either direction
Height : Storage: 68" (173 cm) Towing: 47" (119 cm)
Hitch : Pin style hitch with single hand retractable retention method.
Length : Storage: 63" (160 cm) Towing: 93" (236 cm)
Rolling Width : 47.2" (120 cm)
Seat : High-back, adjustable with standard armrests
Smoothing Rolls : 3.44" (87.5 mm) diameter - 4 split rollers. Overlapping twin steering heads.
Steering : Wheel, adjustable column tilt of 40°
Traction Drive Roller : 7.24" (183.9 mm) diameter vulcanized grooved rubber coated cylinder, 31.5" (80 cm) long
Trailer : Integrated with QuickLatch towing system
Transmission : Hydrogear PG Pump
Transport Tyres : 16 x 6.5 - 8 (15 PSI [1.03 Bar])
Weight : 679 lbs. (309 kg)
Width : 48" (122 cm)
