KX015-4 HG; 4 Post Canopy; Rubber Tracks
SUPERIOR PERFORMANCE
Powerful digging force and a wide
working range makes the KX015-4 ideal for working in location ranging from large
construction sites to roadsides or residential areas.
ENVIABLE
POWER
Kubota’s D782-E3-BH-2EU 13 P, Stage V compliant diesel engine
has the power to maximise digging and lifting performance while meeting all
current emission regulations.
DEPENDABLE
HYDRAULICS
With the boom cylinder positioned to prevent cylinder
damage, you’re ready to take on tough tasks.
SUPREMELY
VERSATILE
A dig depth of up to 2.25m and a maximum reach of 3.73m,
the KX015-4 gives you all the versatility you need.
POWERFUL
PERFORMER
Well-balanced arm and bucket for fast, efficient digging
even in challenging conditions.
BUILT FOR
COMFORT
Large cab with a wide door for easy entry and exit, flat
floor, ample legroom, and adjustable suspension seating. The Kubota Intelligent
Control System’s digital panel is also easy to use.
REASSURINGLY
SAFE
ROPS (Roll Over Protective Structure), TOPS (Tip-Over
Protective Structure) and OPG (Operator Protective Guard) Level
1.
Model : Cabin or Canopy
Machine
Weight (kg) : 1470 or 1420
Power (kW/hp) :
9.6/13
Max Speed (km/h) :
2.1
Max Dig Depth (mm) :
2250
Max Reach (mm) :
3730
Max Digging Force Arm/Bucket (kN) :
7.3/12.7
Aux Flow 1 : 27 l/min @
26 kgf/cm2
Aux Flow 2 :
N/A
Overall width (mm) :
990
Transport height (mm) :
3710
ENGINE
- The KX015-4 is powered by Kubota’s D782-E3-BH-2EU 13PS engine, delivering
the power needed to maximise digging and lifting performance
- The Stage V compliant engine meets all current engine emission regulations
and delivers minimised noise and vibration.

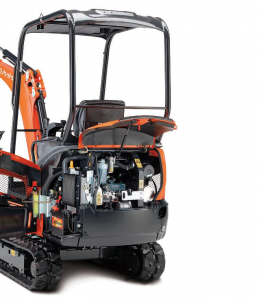

- Parts that require routine maintenance and inspection such as the air
cleaner, water separator, fuel filter, alternator and starter motor are easy
to access.
- Double-element air cleaner for efficient engine operation
- Fuel refuelling buzzer
- Extended fuel filler for easier filling
HYDRAULICS
- For increased reliability when performing in hazardous conditions,
including demolition jobs when a breaker is fitted, the boom cylinder is
positioned to prevent cylinder damage.
- Standard features include a pressure accumulator, hydraulic pressure
checking ports, a third line hydraulic direct return for the AUX feature, a
variable displacement pump, and a straight travel circuit.
- Auxiliary hydraulic circuit piping is installed to the end of the
arm.
- Travel motor hoses are sited within the track frame for added
protection.
VERSATILITY
- Designed for work in restricted spaces or roadside locations, the
versatile KX015-4 enables you to work productively wherever the job takes
you.
- The excavator’s slim 990mm width enables you to pass through narrow access
points.
PERFORMANCE
- A well-balanced 950mm arm and bucket guarantee superior and efficient
digging force, up to 12.7kN (1300 kgf) and an impressive 3.73m reach.

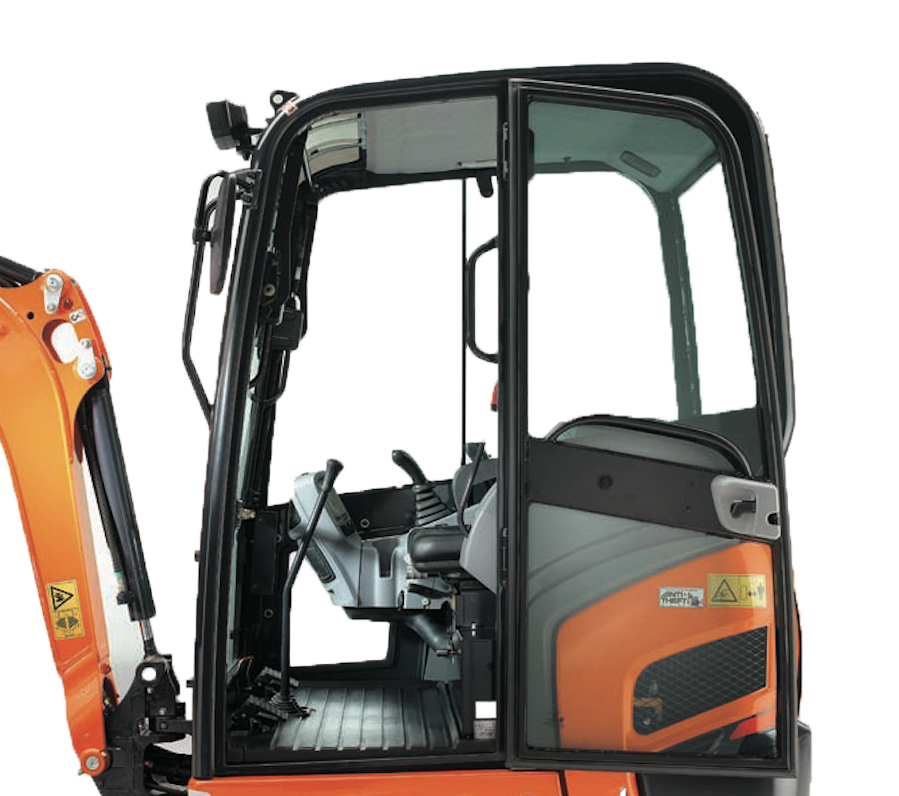

COMFORT
- A wide cabin door enables quick access to and from the cabin, making
operations that require frequent exiting, such as trenching and piping, much
easier.
- Weight-adjustable semi suspension seat and seatbelt
- A user-friendly digital panel is positioned to the front right corner of
the operator for better visibility and features one-touch button operation to
view the time, hour meter and tachometer. Warning lamps with code numbers on
the display will alert you in case of emergencies such as overheating,
hydraulic problems or low battery. Programming of the anti-theft keys can also
be easily performed with the digital panel. Cabin heater for defrosting and
demisting with air ventilation.
- With easy access, simple settings, easy-to-read indicators and alerts,
you’ll always be aware of how the excavator is performing.
SAFETY
- ROPS (Roll-over Protective Structure, ISO3471)
- TOPS (Tip-Over Protective Structure)
- OPG (Operator Protective Guard, Level 1)
- Kubota’s industry-leading, Thatcham-approved antitheft system is standard.
Only programmed keys will enable the engine to start up. Attempting to start
with an un-programmed key will activate the alarm.
