Kubota RA1500 ProLine Rakes
Advanced Engineering for Larger Fields. The RA1500 series represents the ProLine range of single rotor rakes, offering working widths of 4.2m and 4.6m. These machines are built around the heavy-duty ProLine oil-bath gearbox, designed for durability and maintenance-free operation. Hallmarks of the series include the HydroLift height adjustment and standard tandem axles for superior stability.

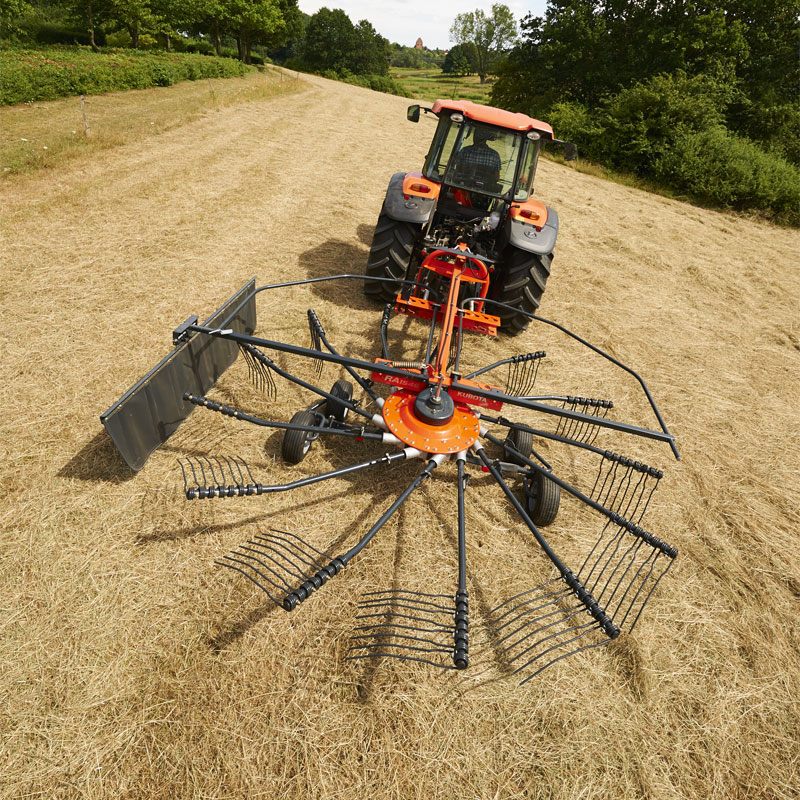

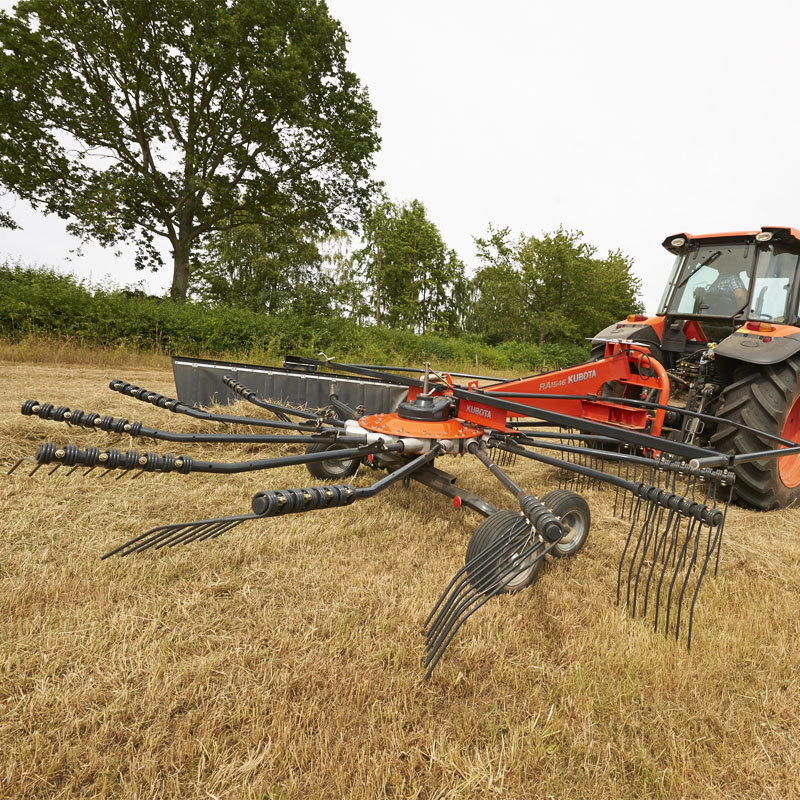

RA1500 in Action
Download Brochure
View technical specs for the RA ProLine range.
ProLine Technology
- Oil-Bath Gearbox: Maintenance-free operation with components fully submerged in oil.
- Durability: Engineered for high-intensity work and long service life.
- Smoothness: Standard oscillation dampers ensure stable running at speed.
- HydroLift: Hydraulic height adjustment from the tractor cab for easy adaptation.
Stability & Control
- Tandem Axles: Standard 4-wheel tandem axle for excellent ground following.
- Pivoting Head: Allows the rake to follow the tractor's path effortlessly during turns.
- Ground Care: Designed to minimize turf damage while maintaining clean pick-up.
- Third Wheel: Available as an option to further enhance ground tracking.
High Capacity
- Working Width: Up to 4.6m for high productivity in larger fields.
- Swath Quality: Curved tine arms create airy, perfectly shaped swaths.

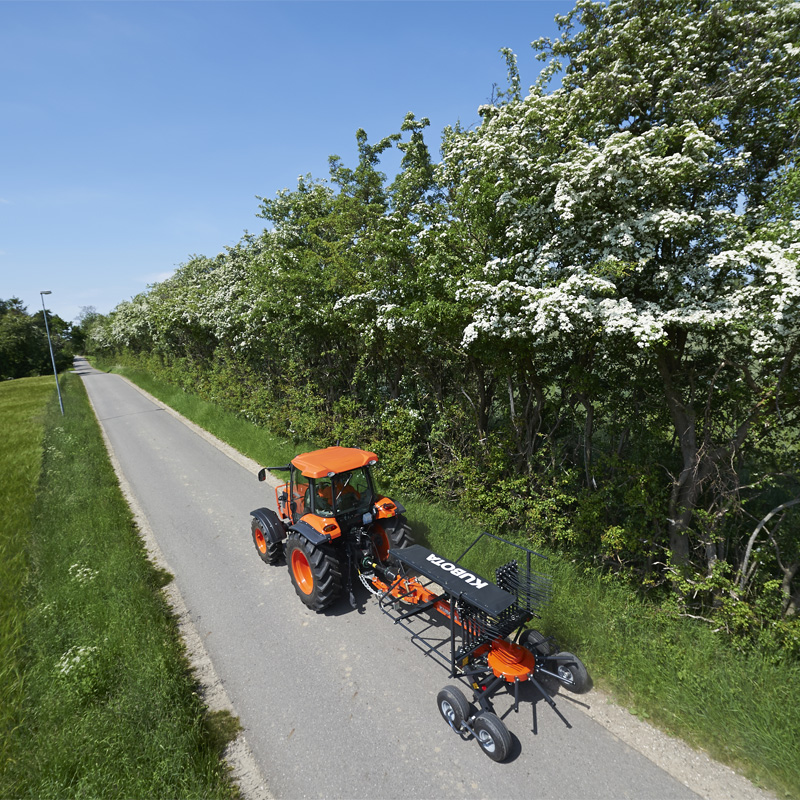

- Transport: Quick conversion from work to transport position.
- Safety: Robust guarding and high-visibility markings for road transit.
Technical Specifications
| Model |
Working Width |
Tine Arms / Rotor |
Weight |
| RA1542 |
4.20 m |
12 |
640 kg |
| RA1546 |
4.60 m |
13 |
670 kg |
SKU: .NRA1500
