Kubota DSX-W GEOSPREAD Spreaders

Accurate spreading in irregular shaped fields

The DSX-W GEOSPREAD is equipped with two actuators on each dosing unit. One of these actuators controls the setting of the discharge point of the dosing cup onto the disc (letter setting), the other controls the application rate. The GEOSPREAD system makes it possible to adjust the letter setting individually for both discs electrically from the tractor cab. This means the working width can be easily adjusted quickly and accurately just by touching the ISOBUS terminal!

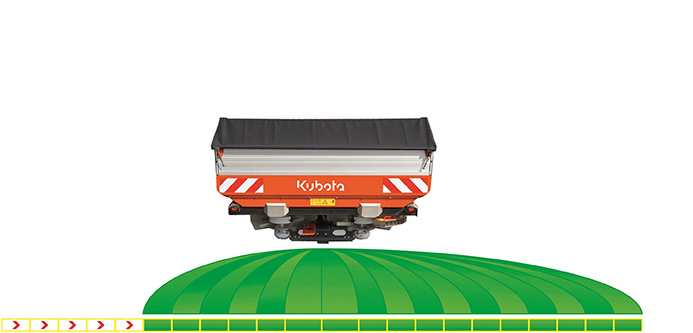

Decreasing the spreading width on the left hand side by 10m


Switching off the sections outwards

The 4 load cells and reference sensor on the DSX-W GEOSPREAD are important features as with section control accurate weighing is essential. The total benefit of GEOSPREAD combined with speed related spreading and GEOPOINT headland management can be up to 15%. This can be achieved by saving fertiliser and better yields, because of no unnecessary overlap. In combination with the optional MULTIRATE application, the variable rate application, which applies multiple rates within a working width even more precision can be achieved.

Mouse over the image to zoom in:

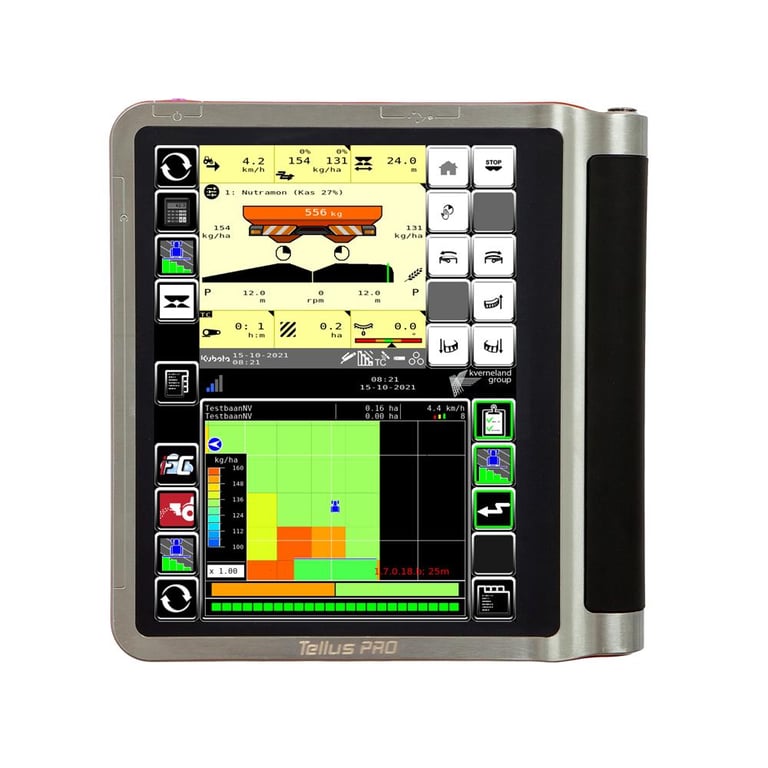

The modern user interface on the IsoMatch Tellus PRO, IsoMatch Tellus GO+ or any other ISOBUS compatible tractor terminal has an easy navigation structure with an intuitive and logical layout and guarantees maximum user friendliness.

The Advantages:

• RotaFlow spreading system
• Fully automatic weighing system with unique reference sensor
• The 1 metre sections (max. 54 sections) can be switched inside-out and outside-in to keep overlaps to the minimum. (depending on the terminal functionality)
• ISOBUS 11783 compatible for easy plug and play
• Possible in combination with IsoMatch GEOCONTROL
• Automatic start/stop with GPS on headlands possible
• Optional MULTIRATE application to apply multiple rates within a working width
• Increase of capacity, spreading two different fertilisers in one-pass with the Kubota GEOSPREAD front-rear combination
• XHD Lift Vanes provide a high quality spreading pattern and durability for the farmer.

Technical specifications

Model (275 cm) | DSX-W1500 |  DSX-W2150 |  DSX-W2800
Hopper capacity (l) |  1500 |  2150 |  2800
Filling height (cm) |  110 |  129 |  148
Width (cm) |  275 |  275 |  275
Filling width (cm) |  269 |  269 |  269
Empty weight (kg) |  665 |  695 |  725
Spread width (m) |  12-45 (54)* |  12-45 (54)* |  12-45 (54)*
Output (kg/min) |  10-320 |  10-320 |  10-320

Model (290 cm) |  DSX-W1875 |  DSX-W2550
Hopper capacity (l) |  1875 |  2550
Filling height (cm) |  120 |  139
Width (cm) |  290 |  290
Filling width (cm) |  284 |  284
Empty weight (kg) |  705 |  735
Spread width (m) |  12-45 (54)* |  12-45 (54)*
Output (kg/min) |  10-320 |  10-320

*Depending on fertiliser type and type of vanes
