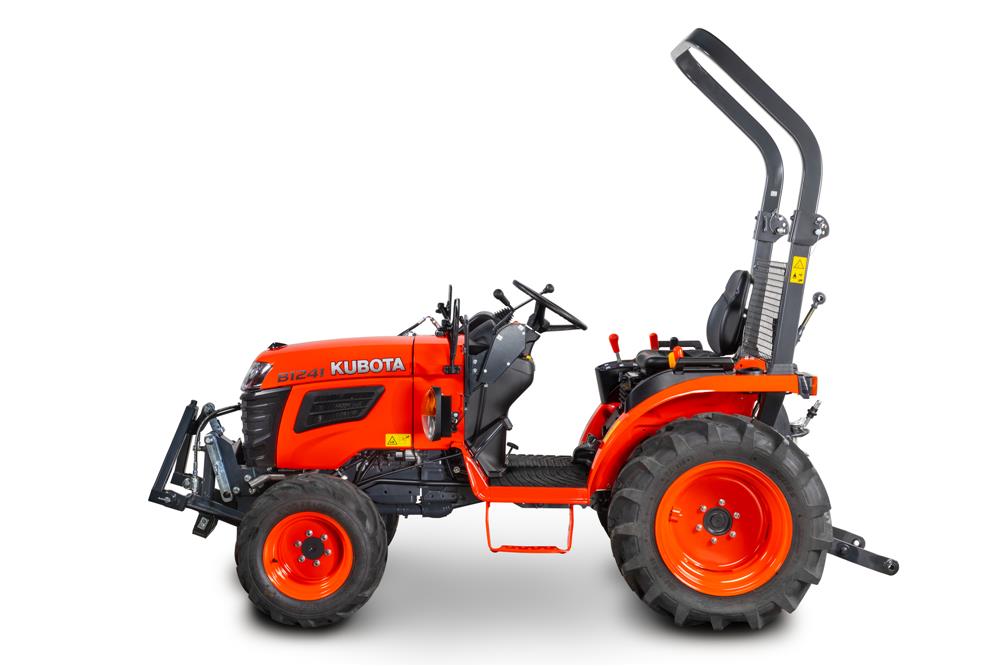

Kubota B1241 Compact Tractor
Agile, Powerful and Versatile. The Kubota B1241 is the
top-of-the-range model in the B1 Series, offering a perfect balance of power and
compact dimensions. Designed to handle a wide variety of tasks from landscaping
to small-holding work, it features a 24HP diesel engine and a robust mechanical
transmission to ensure maximum productivity in tight spaces.
Video & Brochure
View Range Brochure
Watch
the B1 Series in action and explore technical data.
Engine & Traction
- 24HP Diesel: 3-cylinder Kubota engine with E-TVCS
combustion for lower emissions.
- High Torque: Reliable power delivery with exceptional
fuel efficiency.
- Standard 4WD: Switchable four-wheel drive for superior
pulling power on rough terrain.
- Portal Front Axle: Maintenance-free design with high
ground clearance and tight turning.
Work & Comfort
- Mechanical Gearbox: Precision control with 9 forward and
3 reverse gears.
- Hydraulic Power Steering: Standard on the B1241 for
effortless manoeuvring.
- Lifting Power: Category 1 rear linkage with an impressive
615kg lift capacity.
- Ergonomic Platform: Unobstructed operator deck with
color-coded controls.
Payment & Shipping
- Business Finance: Flexible finance packages available
through Stubbings Bros.
- Professional PDI: Fully assembled, tested, and delivered
by our expert team.
- Isle of Wight Service: Local warranty support and genuine
Kubota parts.
Technical Specifications
| Feature |
B1241 Specification |
| Engine |
Kubota 3-Cylinder Diesel (1123cc) |
| Engine Power |
24 HP (17.7 kW) |
| Transmission |
Mechanical (9 Forward / 3 Reverse) |
| Max Speed |
Approx 20 km/h |
| Rear Lift Capacity |
615 kg |
| Steering |
Hydraulic Power Steering |
| PTO Speed |
540 rpm (Rear) |
Excellent Price-Performance
Contact Stubbings Bros
today for a quote and to discuss attachment options for the B1241.
