CUB CADET XT3 QS137 54" SIDE-DISCHARGE PETROL RIDE ON MOWER
Designed to meet the toughest and most demanding conditions, driven by
true power packages and equipped with ultra-strong components - the Cub Cadet
XT3 are the ultimate lawn tractors.
XT3 SERIES
Now with TIGHT TURN xTREME, the
smallest turning radius on the market at just 17cm for unbeatable efficiency
even in confined spaces. The XT3 range are brimming with power, capable of
mowing dense grass and transporting larger loads including a mechanical
differential lock that provides optimum traction however tough the terrain.
Cutting width : 137cm (54'')
Transmission
: Hydrostatic, All-Ground Traction System
Rated
power kW/min -1 : 16,2 / 3000
Mowing area in m 2
/h: 11000
Grass bag capacity (l) : Optional
210
EAN: 4008423872545
MODEL NO : 14CIA5CQ603
XT3 QS137
137CM / 54"
The Cub Cadet XT3 QS137 is a versatile and agile lawn tractor, designed
for the toughest, most demanding conditions. The mechanical differential lock
provides the optimum traction on all terrains, powered by a strong V-Twin
Kawasaki engine delivering superior power and high-torque and benefits from
great manoeuvrability with a narrow turning radius of just 17cm, the smallest on
the market.
ALL-GROUND TRACTION
Optimum traction, however tough
the terrain – thanks to the mechanical differential lock.
GRASS BAG WITH ELECTRIC BAG LIFT
At the touch of a
button, the grass catcher of the XT3 QR106e lifts up and tips the cuttings
out.
LARGEST GRASS BAG ON THE MARKET
Vast 360 litre
capacity ensures maximum efficiency.

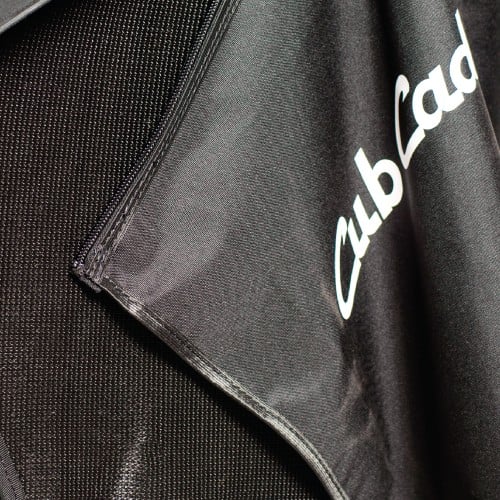

ANTI-DUST SYSTEM
XT3 rear discharge models come
with a zip on multi-layer dust apron which protects you from swirling grass and
dust.
WELDED MOWING DECK
For high durability and
robustness available on the XT3 QS137.

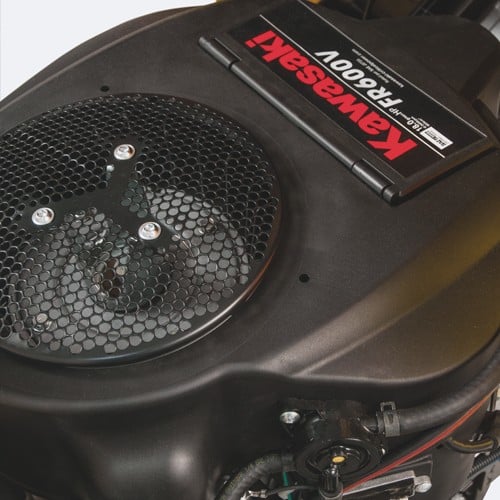

POWERFUL KAWASAKI V-TWIN ENGINE
Two-cylinder engine
for demanding terrain with particularly quiet running and low fuel
consumption.
SPECIFICATIONS
| ENGINE XT3 QS137 |
| Engine |
Kawasaki |
| Engine displacement (cm³) |
726 |
| Rated power (kW/min?¹) |
16,2 / 3,000 |
| Cylinders |
V-TWIN dual cylinder |
| Fuel tank capacity(l) |
11,4 |
| DRIVE SYSTEM |
| Transmission |
Hydrostatic, All Ground Traction
System |
| Air speed (max) |
Infinitely variable (f/r) |
| Control |
Foot pedal control |
| Cruise Control |
Standard |
| CUTTING SYSTEM |
| Mowing area (m²/h) |
11,000 |
| Cutting width |
137cm (54'') |
| Cutting height |
25-100 mm |
| Number of blades |
3 |
| Deck Engagement |
Electric PTO |
| Deck height positions |
12 positions |
| Deck wheels |
4 balls deck wheels |
| Wash nozzle / mulching plug |
Standard /
Standard |
| DISCHARGE SYSTEM |
| Grass bag capacity (l) |
Optional 210 / (19A30018100) |
| Bag lever / hardtop |
– / – |
| Grass Deflector |
– / Standard |
| FRAME |
| Front axle |
Heavy-duty cast-iron |
| Front bumper |
Bull Bar |
| Turning radius (cm) |
TIGHT TURN xTREME 17cm |
| Wheels (front/rear) |
16'' x 6.5-8'' Turf Saver / 22'' x
9.5'' |
| Wheel bearings |
Ball bearings |
| Frame |
Fully robotically-welded frame |
| ELECTRIC |
| Headlights |
LED |
| COMFORT |
| Seat type |
High Back Seat Cub Cadet/Armrests |
| Seat adjustment |
Lever, angled,10 slide |
| Steering wheel |
Ergo Soft-Grip |
| Tool box / Cub holder |
Standard / Standard |
| 12V Plug |
Standard |
| Mow in reverse |
Standard |
| Battery charger |
– |
| DIMENSIONS |
| Noise values (dB) |
93 / 103 / 105 |
| Vibration value body (K-factor) (m/s²) |
1 / 0,5 |
| Vibration value hand-arm (K-factor) (m/s²) |
5 / 1,5 |
| Dimensions (L / W / H) (cm) |
197 / 167 / 110 |
| Weight net (kg) |
270 |
