XT2 SERIES
The Cub Cadet XT2 series offers you an even higher level of power,
control functions and durability.
Cutting width : 106cm
(42'')
Transmission : Hydrostatic
Rated power
kW/min -1 : 11,6 / 2,2
Mowing area in m 2 /h:
8.000
Grass bag capacity (l) :
320
EAN: 4008423872262
MODEL NO : 13CFA1CR603
XT2 lawn
tractors are the most agile in the XT series thanks to Tight Turn xTreme making
them ideal for working on tough terrain, transporting and using additional
accessories, whatever the season. At just 17cm turning circle the XT2 series
have the tightest turning radius on the market. Innovative tight turn technology
delivers unsurpassed capability in tight places.
XT2 QR106 106CM
/ 42
The XT2 QR106 features the Cub Cadet Tight Turn xTreme, where a turning
radius of 17cm provides unsurpassed manoeuvrability in tight places and around
the garden. The powerful and reliable V-Twin Kawasaki engine features a push
button start and the hydrostatic drive system operated by foot pedal control
provides a smooth and comfortable ride. It also features a 106cm / 42” cutting
deck able to cut up to 8,000 m² per hour. The integrated bag full system
identifies when the large 320 litre grass bag is full and the blade shut off
system lets you know it is full. The grass bag has a built in telescopic lever
meaning that emptying it when full can be done without even getting out of the
seat.
DIAGONAL ADJUSTABLE SEATThe seat can be
adjusted to suit you and provide pure comfort whilst you mow.
MECHANICALLY
SUPPORTED CUTTING HEIGHT ADJUSTMENTQuickly and easily select
the perfect setting with the widest adjustment range on the market from
25-100mm
PUSH BUTTON BLADE STARTActivate the cutting
blades safely and more efficiently.
HYDROSTATIC TRANSMISSIONImpresses with its
modern technology and featuring a self-lubricating hydro pump for minimum
maintenance and maximum durability. The hydrostatic transmission also stands out
for its velocity control as well as continual forward and reverse speeds. No
clutching or shifting required which means you can drive more gently with
greater accuracy. The XT Series lawn tractors are foot-pedal controlled. The LT
Series tractors are controlled by either a hand lever (side discharge tractors)
or a foot pedal (rear discharge tractors).

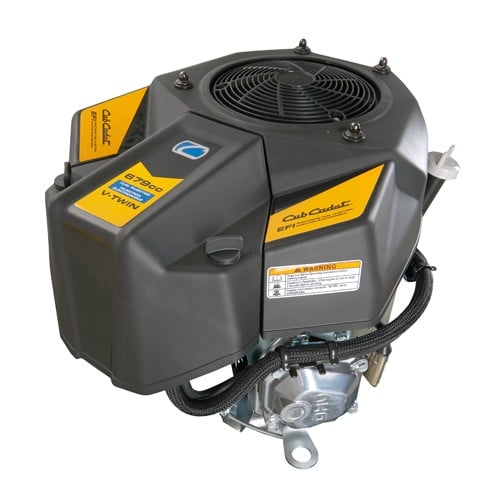

CUB CADET V-TWIN EFI ENGINEFor the first time,
the XT2 PR106ie and XT2 PS117i models feature an engine we manufactured in
house. The 2-cylinder drive comes with exceptional performance and efficiency.
Saving you fuel and money and keeping maintenance costs low.
GRASS BAG WITH ELECTRIC BAG LIFTAt the touch of
a button, the grass catcher on the XT2 PR106ie lifts up and tips the cuttings
out..
Specifications
| ENGINE |
| Engine |
Kawasaki |
| Engine displacement (cm³) |
726 |
| Rated power (kW/min?¹) |
11,6 / 2,200 |
| Cylinders |
V-TWIN dual cylinder |
| Fuel tank capacity (l) |
11,4 |
| DRIVE SYSTEM |
| Transmission |
Hydrostatic |
| Air speed (max) |
Infinitely variable (f/r) |
| Control |
Foot pedal control |
| Cruise Control |
Standard |
| CUTTING SYSTEM |
| Mowing area (m²/h) |
8,000 |
| Cutting width |
106cm (42'') |
| Cutting height |
25-100 mm |
| Number of blades |
2 |
| Deck Engagement |
Electric PTO |
| Deck height positions |
12 positions |
| Deck wheels |
4 balls deck wheels |
| Wash nozzle / mulching plug |
Standard /
(196-550-000) |
| DISCHARGE SYSTEM |
| Grass bag capacity (l) / accessory no. |
320 / (196-555-603
Anti-Dust-System) |
| Bag lever / hardtop |
Rounded ergo telescopic handle /
Plastic |
| Bag full indicator / Grass Deflector |
Deluxe w Blade
Shutoff / (196-552-A000) |
| FRAME |
| Front axle |
Heavy-duty cast-iron |
| Front bumper |
Loop |
| Turning radius (cm) |
TIGHT TURN xTREME 17cm |
| Wheels (front/rear) |
15'' x 6'' Turf Saver / 18'' x
8.5'' |
| Wheel bearings |
Sleeve bearings |
| Frame |
Fully robotically-welded frame |
| ELECTRIC |
| Headlights |
LED |
| COMFORT |
| Seat type |
High Back Seat Cub Cadet |
| Seat adjustment |
Lever, angled, 10 slide |
| Steering wheel |
Ergo Soft-Grip |
| Tool box / Cup holder |
Standard / Standard |
| 12V Plug |
– |
| Mow in reverse |
Standard |
| Battery charger |
– |
| DIMENSIONS |
| Noise values (dB) |
88 / 98 / 100 |
| Vibration value body (K-factor) (m/s²) |
1 / 0,5 |
| Vibration value hand-arm (K-factor) (m/s²) |
5 / 1,5 |
| Dimensions (L / W / H) (cm) |
250 / 110 / 118 |
| Weight net (kg) |
253 |
