CUB CADET LT2 NS96 Ride on Mower with 96cm Cutting Width

Out of Stock

Contact us for a price


Cutting width : 96cm (38'')
Transmission : Foot Hydrostatic
Rated power kW/min -1 : 8,3 / 2,8
Mowing area in m 2 /h: 4000
Grass bag capacity (l) : Optional 200

EAN: 4008423891843
MODEL NO : 13AB79DF603


LT2 SERIES


LT2 models can cover large areas in a short space of time, with infinitely variable hydrostatic transmissions. The cutting decks are adjustable through 5 height positions, from 30mm to 95mm and are equipped with 2 anti-scalp deck wheels. The frames are made of strong steel construction, which is fully welded and powder coated for added durability, whilst the step-though design makes it easier for you to get on and off the tractor.


LT2 SERIES 96CM/38


The Cub Cadet LT2 NS96 is a 96cm/38" cutting width, twin bladed, side discharge tractor, with a Cub Cadet engine. With a step through chassis design, it is incredibly easy and safe when mounting and dismounting. A mulch kit and grass bag are available as optional extras.

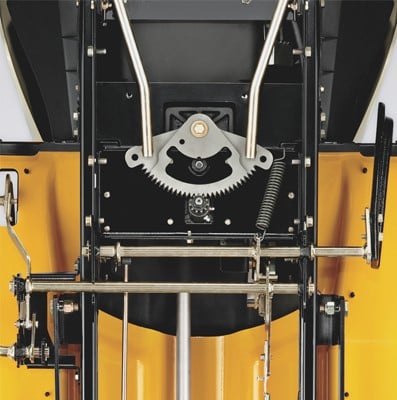

PRECISE STEERING SYSTEM

All Cub Cadet lawn tractors help redefine your notion of comfort. We have improved the steering of the lawn tractors. Our precision gear-steering technology ­supports operators at work and makes your powerful lawn tractor even more efficient and surprisingly easy to manoeuvre.

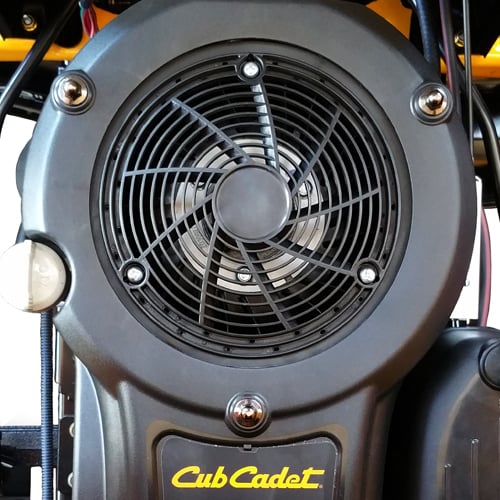

CUB CADET ENGINE

Selected LT lawn tractors are equipped with a powerful and reliable Cub Cadet engine – developed in the USA

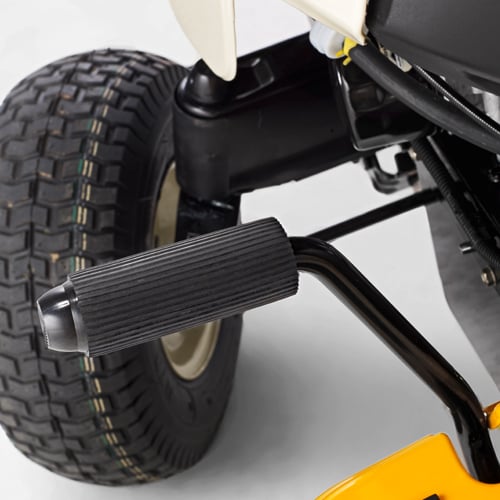

FLOATING STEEL OR CAST IRON AXLE

A pivoting steel or cast iron front axle will keep all four wheels on the ground, even on an uneven surface

HYDROSTATIC TRANSMISSION

Impresses with its modern technology and featuring a self-lubricating hydro pump for minimum maintenance and maximum durability. The hydrostatic transmission also stands out for its velocity control as well as continual forward and reverse speeds. No clutching or shifting required which means you can drive more gently with greater accuracy. The XT Series lawn tractors are foot-pedal controlled. The LT Series tractors are controlled by either a hand lever (side discharge tractors) or a foot pedal (rear discharge tractors).

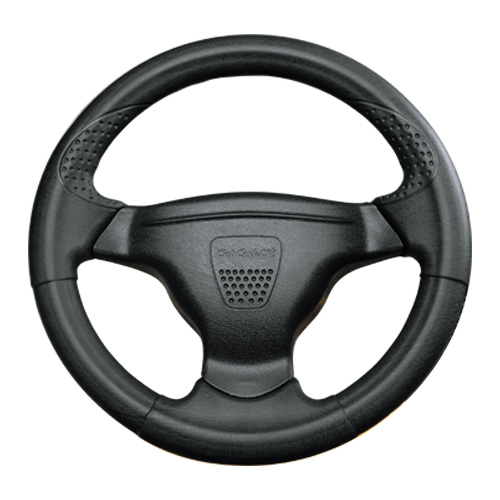

COMFORT STEERING WHEEL

A 3-spoke soft grip steering wheel is standard on all our tractors for comfortable mowing.

CUTTING HEIGHT ADJUSTMENT

5-position height adjustment to easily change the cutting height through 30–95 mm.









SPECIFICATIONS

ENGINE LT2 NR96
 Engine  Cub Cadet OHV
 Engine displacement (cm3)  439
 Rated power (kW/min-1)  8,3 / 2,8
 Cylinders  Single
 Fuel tank capacity(l)  3,8

DRIVE SYSTEM
 Transmission  Hand Hydrostatic
 Air speed (max)  Infinitely variable (f/r)
 Control  Manual lever control
 Cruise Control  –

CUTTING SYSTEM
 Mowing area (m2/h)  4,000
 Cutting width  96cm (38'')
 Cutting height  30-95 mm
 Number of blades  2
 Deck Engagement  Manual lever control
 Deck height positions  5 positions
 Deck wheels  -0
 Wash nozzle / mulching plug  – /Optional (OEM-190A116)

DISCHARGE SYSTEM
 Grass bag capacity (l) / accessory no.  Optional 200l/ (OEM-190-180A)
 Bag lever / hardtop  -- / --
 Bag full indicator / Grass Deflector  – / Standard

FRAME
 Front axle  Steel

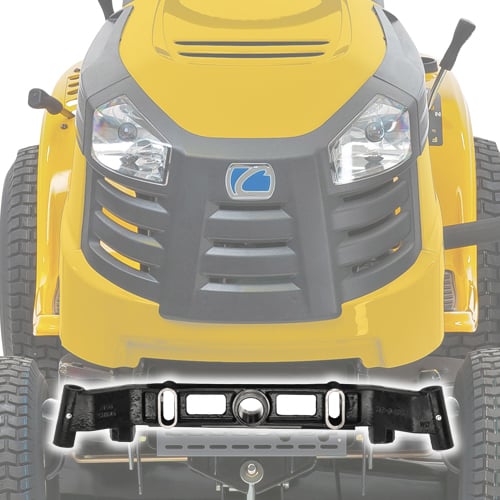

 Front bumper  (OEM-196B603)
 Turning radius (cm)  46cm (18)"
 Wheels (front/rear) (Zoll)  15 x 6 / 20 x 8
 Wheel bearings  Sleeve bearings
 Frame  Easy entry frame

ELECTRIC
 Headlights  Standard

COMFORT
 Seat type  High back
 Seat adjustment  Tool-less
 Steering wheel  Soft Grip
 Tool box / Cub holder  – / –
 12V Plug
 Mow in reverse  –
 Battery charger  (196-967-678)

DIMENSIONS
 Noise values (dB)  88 / 98 / 100
 Vibration value body (K-factor) (m/s2)  1 / 0,5
 Vibration value hand-arm (K-factor) (m/s2)  5 / 1,5
 Dimensions (L / W / H) (cm)  170 / 107 / 103
 Weight net (kg)  150


SKU:.NLT2NS96
...
