Engine Type |
Cub Cadet OHV |
Engine Displacement |
382 ccm |
Engine Cylinders |
Single |
Engine Nominal Power |
7.4 kW / 2,700 RPM |
Lubrication |
Fully pressurized oil pump with spin-on oil filter |
Transmission |
Transmatic, 6 Speeds (Shift-on-the-go) |

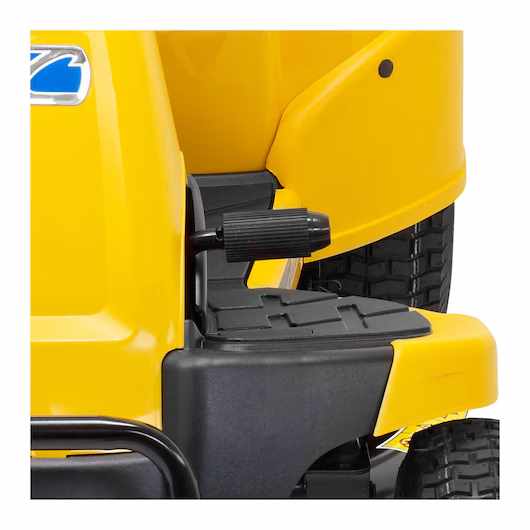

Control |
Foot pedal control |
Tank Volume |
4.9 L |
Recommended Mowing Area |
2,500 m² |
Cutting Width |
76 cm |
Cutting Options |
3-in-1 Option |
Number of Blades |
1 |
Deck Engagement |
Manual lever control |
Cutting Height |
38–95 mm (5 positions) |
Washing Nozzle |
Standard |
Mow in Reverse |
Standard |
Grass Catcher Capacity |
200 L |
Bag Lever |
2 grips |
Hardtop |
Standard |
Bag Full Indicator |
Standard |
Mulching Kit |
Optional (196-334-600) |
Grass Deflector |
Optional |
Frame |
Easy entry frame |
Front Axle |
Steel |
Front Bumper |
Standard |
Turning Radius |
46 cm |
Wheel Size (Front/Rear) |
13 in. x 5 in. / 16 in. x 6.5 in. |
Bearings |
Sleeve bearings |
Seat Type |
Comfort Seat |
Seat Adjustment |
Tool-less |
Steering Wheel |
Standard |
Headlights |
– |
Battery |
12V, 135CCA, AGM |
Battery Charger |
Optional (196-967-678) |
Dimensions (L / W / H) |
225 cm / 86 cm / 112 cm |
Weight |
144 kg |
Sound Emission LPA / LWA / LWAG |
85.9 / 98.6 / 100 dB(A) |
Vibration Value (Hand/Arm) |
2.4 m/s² (K-Factor: 1.2 m/s²) |
Vibration Value (Body) |
1.2 m/s² (K-Factor: 0.6 m/s²) |
