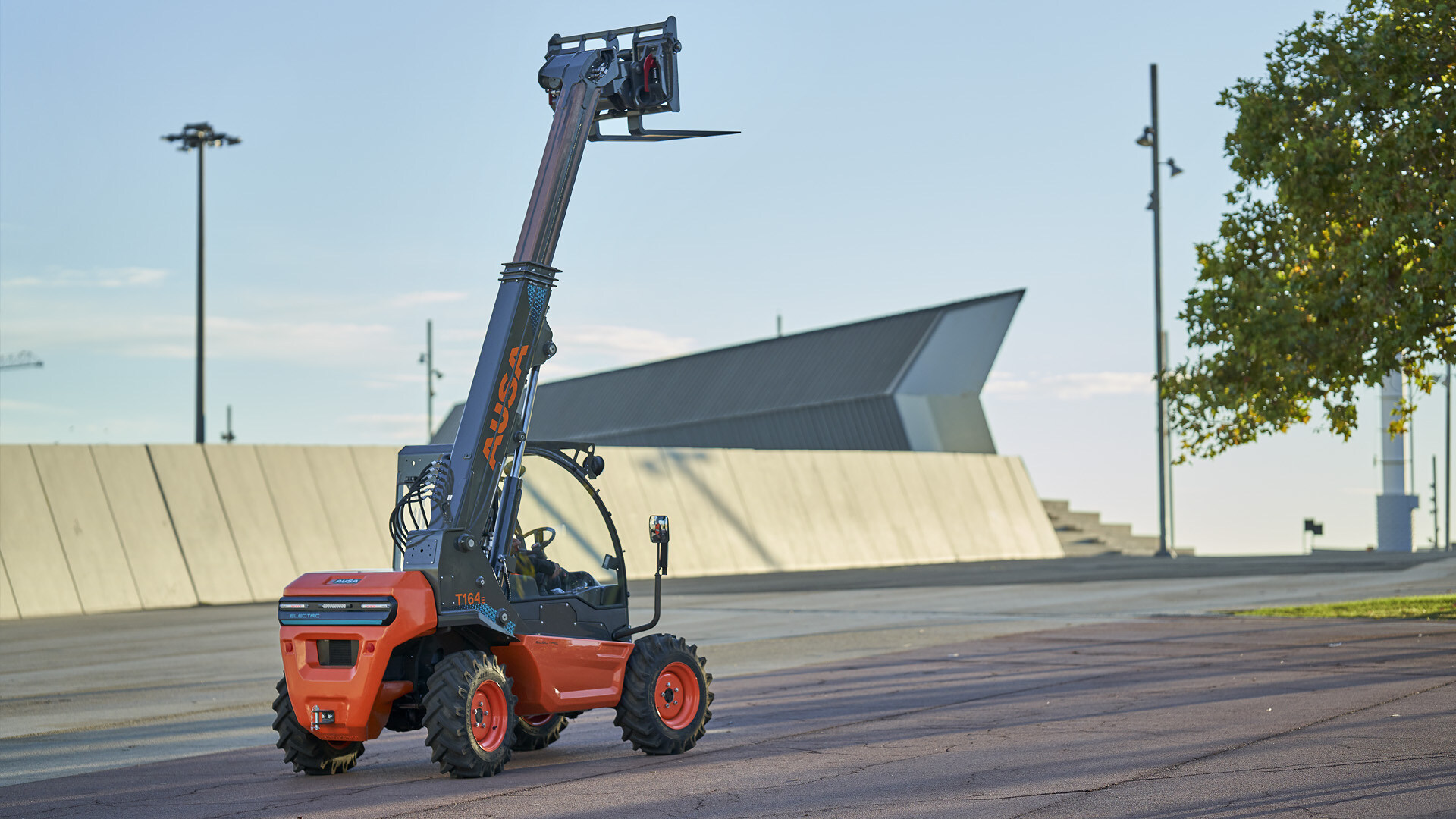

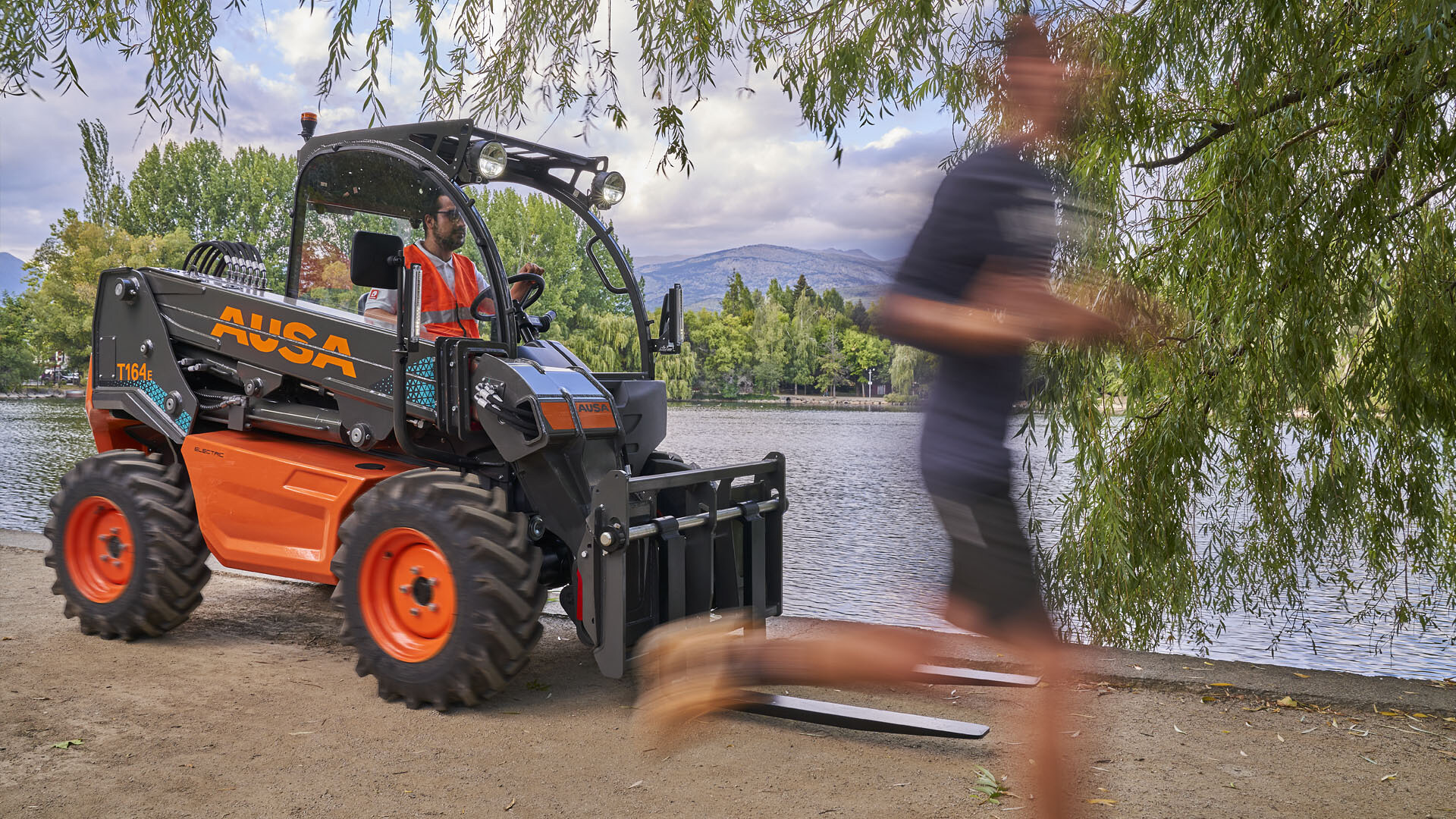

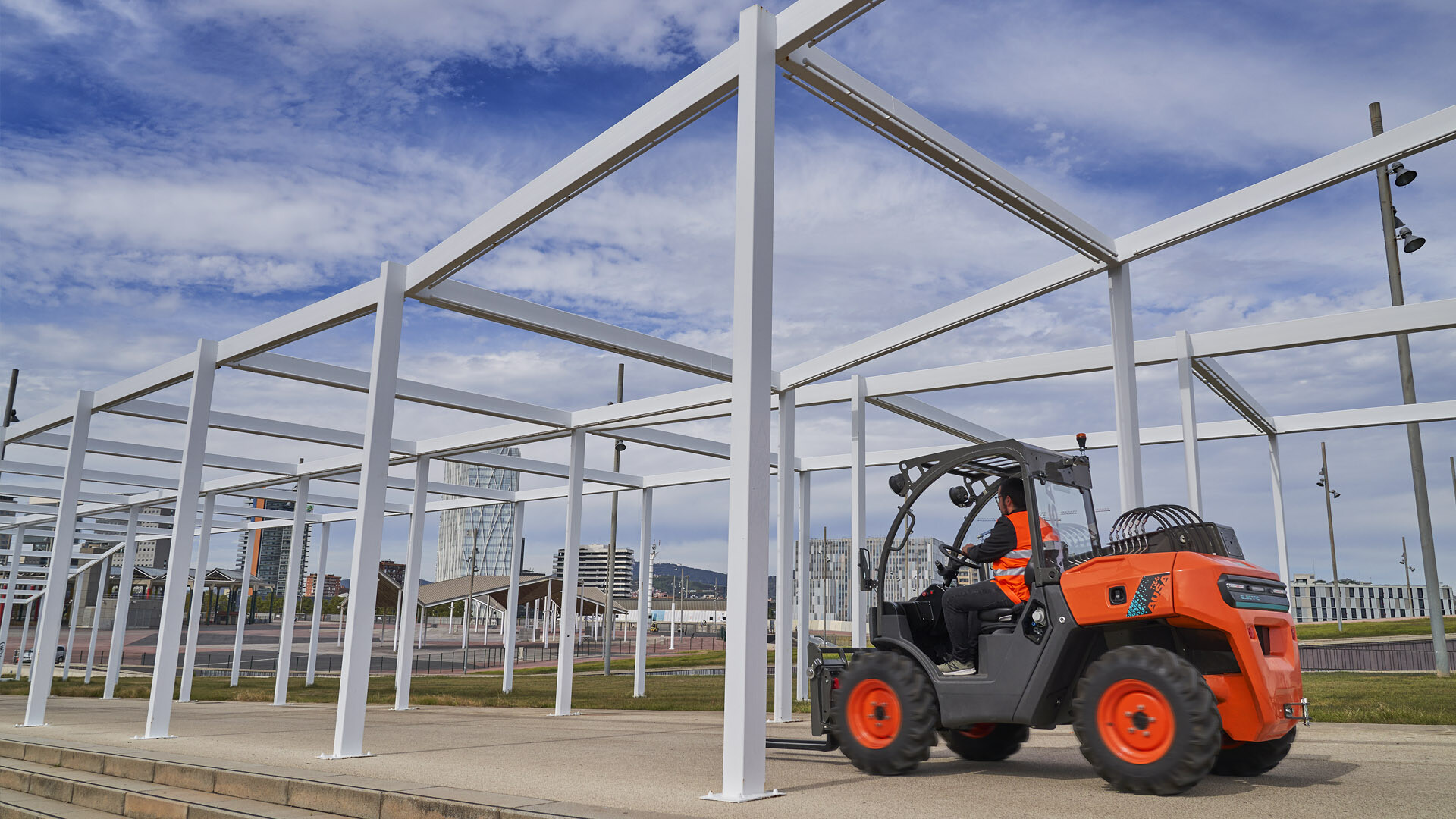

AUSA T164E ELECTRIC TELEHANDLER
Electric, powerful, all-terrain. The T164E electric telehandler is the
perfect vehicle for material lifting tasks with no CO2
emissions.
It has been designed with sufficient capacity for a complete day of work
without needing to be recharged. With the integrated charging cable, it can be
connected directly to an electrical network through three charging options:
110V, 230V or 415V with a fast charger.
An ideal vehicle for working in
emission-free spaces, such as greenhouses, municipal works carried out at night,
indoors, etc. With a power of 18.6 kW and excellent off-road capability, it can
work on difficult terrain and gradients of up to 32%.
General
Load capacity - 1600 Kg
Load capacity at
maximum height - 1600 Kg
Empty weight - 3370 Kg
Transmission -
Electric
Maximum lift - 4000 mm
Maximum lift under maximum load - 3400 mm
Maximum reach - 1740 mm
Maximum load at maximum reach - 600 Kg
Battery
Battery type - Lithium-Ion Battery (NCM)
Gross capacity - 15.5 kWh
System voltage - 48 V
Range -
May vary according to weather conditions and use. For temperatures below
0ºC, it is recommended to include the Additional battery for longer range (+3.1
kWh)
One intense shift.
Charge
Charger - Integrated
Charging time -
20-80% - 3:15 h
May vary according to weather conditions and the type and power of the
charging point 2 h (230V))
Charging time - 20-80% (fast charger) - 1 h (230V)
May vary according to weather conditions and the type and power of the
charging point (415V)
Charging cable - plug type 110V (yellow); 230V (blue); 415V
(red).
Engine
Peak power - 21.2 kW
Nominal power - 8.6
kW
Torque - 134
Emissions Zero - emission
Driving
Max. speed - 15 Km/h
Maximum gradient -
32%
External turning radius - 3440 mm
Traction - 4x4 Fullgrip
Tyres
10.0/75-15.3.
Hydraulic system
Flow rate - 29 l/min
Working
pressure - 210 bar.
Tank capacity
Hydraulic system - 33 l.
Brakes
Service - Hydraulic
Parking -
Negative.
Key: fitted as standard
otherwise
optional
Driving position
Open ROPS/FOPS cab
Semi-closed
ROPS/FOPS cab with front, rear and upper windscreens
Closed ROPS/FOPS cab
with heating
Couplers
Universal mechanical
coupler
Universal hydraulic quick coupler (includes 5th hydraulic
line)
EURO8 hydraulic quick coupler (includes 5th hydraulic
line)
Safety
Seat belt with fasten sensor
Seat with
operator's presence sensor
LED rotating
beacon
Acoustic warning for reverse gear
Emergency
stop
Hill Holder - hill-start assist
Negative
brake
Load level indicator
Overload
locking system with 60-second deactivation push-button
Windscreen
protective grill
Lighting and driving
Road lights
and second rear-view mirror
Front (2) and rear (1) working lights
Rear-view mirror
Right-side panoramic rear-view
mirror
Comfort
Adjustable ergonomic seat
All-in-one
joystick
Inverted joystick functions
Advanced
equipment
Electric transmission
Second-generation FullGrip® (4WD)
Inching pedal
Digital
display
Advanced support
AUSAnow fleet
manager
Additional battery for longer range (+3.1
kWh)
Forks
1,000 mm forks
1,200 mm
forks
1,050 mm fork carriage
1,200 mm load
rest
Built-in FEM II side shifter with 1,200 mm load
rest
Implements
Two-hand control for locking and
unlocking attachments
420-litre shovel
Accessories
4th
auxiliary hydraulic line
5th auxiliary
hydraulic line
Auxiliary hydraulic line with continuous flow
Car radio
Waterproof document holder
Air filter
with cyclone pre-filter
Biodegradable
hydraulic oil
Towing ball
Power socket for the
trailer
Parts
1,000 h maintenance kit
Standard
spare wheel
