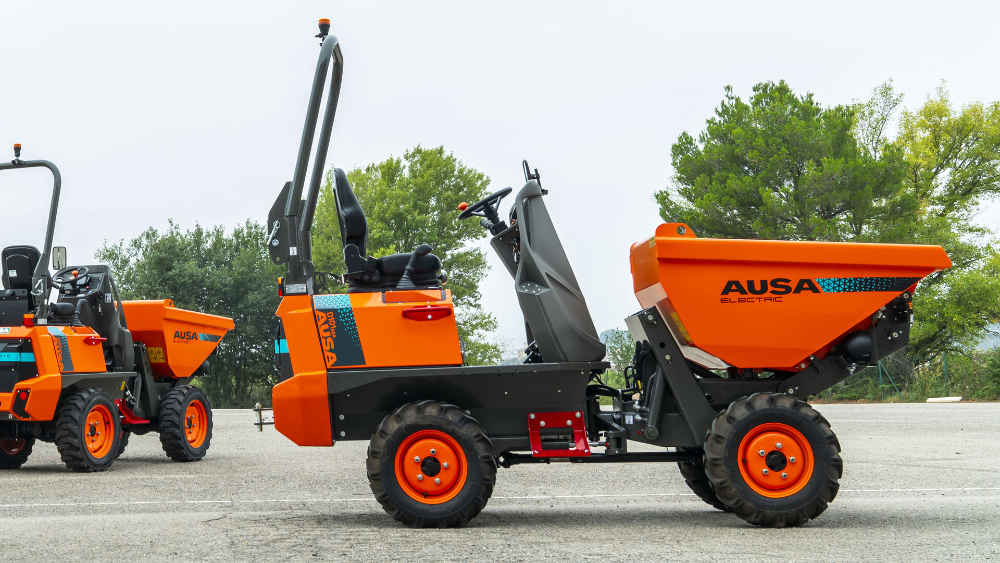

AUSA D101AEA Compact

The D101AEA Compact is AUSA's most compact electric dumper.

It has a 1,000 kg (2,200 lb) payload and hi-tip skip, which is capable of lifting and tipping at a height of up to 1.6 meters (5.2 ft). It is only 100 cm (39 in) wide, so it can pass through doors in buildings and homes, making it the perfect partner for handling indoor demolition debris. This all-terrain dumper is as powerful as similar vehicles with diesel engines. In addition, it has been designed with a working range of at least one intense shift.

Technical data

General

Unloading system - High
Load capacity - 1000 Kg
Chassis - Articulated
Water skip capacity - 345 l
Level skip capacity - 395l
Heaped skip capacity - 565 l
Empty weight - 1430 Kg
Reversibility - Non-reversible

Battery

Battery type - Lithium-Ion Battery (NCM)
Gross capacity - 9.3 kWh
System voltage - 48 V
Range -

May vary according to weather conditions and use. For temperatures below 0ºC, it is recommended to include the Additional battery for longer range (+3.1 kWh)

One intense shift.

Charge

Charger - Integrated
Charging time - 20-80%

May vary according to weather conditions and the type and power of the charging point 2 h (230V))

Charging time - 20-80% (fast charger)

May vary according to weather conditions and the type and power of the charging point 1 h (415V)

Charging cable - plug type 110V (yellow); 230V (blue); 415V (red).

Engine

Peak power - 17.3 kW
Nominal power - 7.6 kW
Torque - 130
Emissions Zero - emission

Driving

Max. speed - 14 Km/h
Maximum gradient - 34%
External turning radius - 3080 mm
Traction - 4x4
Tyres 6.5/80-12..

Hydraulic system

Hydraulic circuit -12 cc gear pumps
Flow rate - 26.4 l/min
Working pressure - 180 bar.

Tank capacity

Hydraulic system - 24.5 l.

Brakes

Service - Hydraulic
Parking - Negative.

---

---

Key: fitted as standard  otherwise optional

Driving position
Rear folding ROPS protective structure

Safety
Seat belt with fasten sensor
Seat with operator's presence sensor
LED rotating beacon
Green rotating beacon
Acoustic warning for reverse gear
Emergency stop
Anti-vandal security system
Hill Holder - hill-start assist
Negative brake

Lighting and driving

Road lights
Front LED working lights
Rear-view mirror
Second rear-view mirror

Comfort
Adjustable ergonomic seat
All-in-one joystick

Advanced equipment
Electric transmission
Digital display
Advanced support
AUSAnow fleet manager
Additional battery for longer range (+3.1 kWh)

Accessories
Metal engine cover
Front mudguards
Waterproof document holder
Biodegradable hydraulic oil
Towing ball and pintle hitch
Power socket for the trailer

Parts
1,000 h maintenance kit
Standard spare wheel Standard Optional
